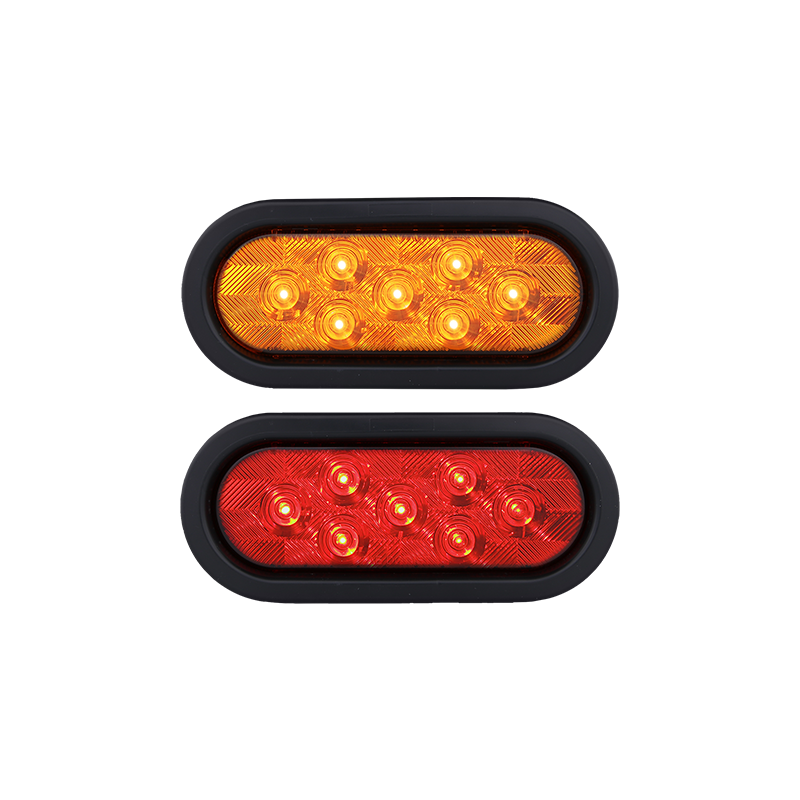

164 Series

Reference: 164 Series

Features / Specifications

  • Low Profile Recessed Fitting
  • ADR Road Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • Blister Pack Includes Grommet/Plug
  • 164mm x 57mm x 18mm
  • 5 Year Warranty

Fitting Instructions

Horizontally fit grommet into cut out (171mm x 61mm) in the mounting surface, run wire through the back of the lamp and then push lamp into the grommet. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

164 Series Tech_1.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers

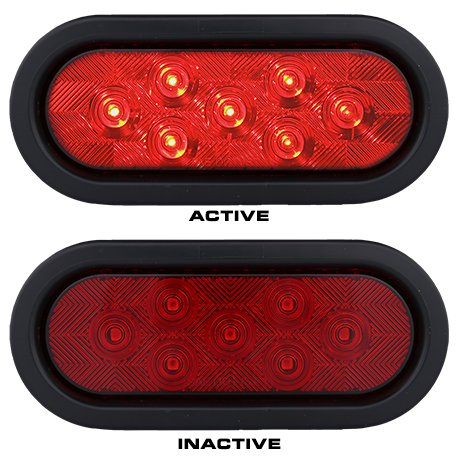

Function Stop/Tail
Part No.
164RM Includes Grommet/Plug, Blister
.
LED Qty 7
Cable Includes P/N. 53102
.
Draw Stop Tail
@13.8V 0.30A 0.02A
@28V
.
Approvals Function Category CRN
ADR Stop/Tail 49/00 50890
CTA Stop/Tail 49/00 CTA-050890

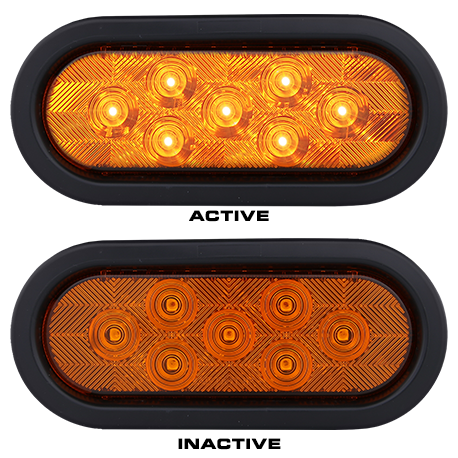

Function Rear Indicator
Part No.
164AM Includes Grommet/Plug, Blister
.
LED Qty 7
Cable Includes P/N. 53102
.
Draw Indicator
@13.8V 0.13A
@28V
.
Approvals Function Category CRN
ADR Indicator 6/00 2a 50889
CTA Indicator 6/00 2a CTA-050889
164 Series
