380 Series Surface Mount
  • 380 Series Surface Mount

380 Series Surface Mount

Reference: 380 Series Surface Mount

Features / Specifications

  • Surface Mount
  • Low Profile Slimline Design
  • ADR/ECE Approved (Amber/Red)
  • IP67 Rated
  • Voltage Range 12 Volt
  • 404mm x 46mm x 17mm
  • 5 Year Warranty

Fitting Instructions

Surface mount onto flat surface horizontally to the ground, run wires through back and fix with screws supplied at both ends. Please refer to ADR13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Stop/Tail
Part No.
380CR12 12V, Coloured Lens, Blister
380CCR12 12V, Clear Lens,Blister
.
LED Qty 18
Cable 40cm cable
.
Draw Stop Tail
@13.8V 0.16A 0.02A
@28V 0.12A 0.01A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 39473
ADR (CC) Stop/Tail 49/00 44019
CTA (CC) Stop/Tail 49/00 CTA-060129
Function Rear Indicator
Part No.

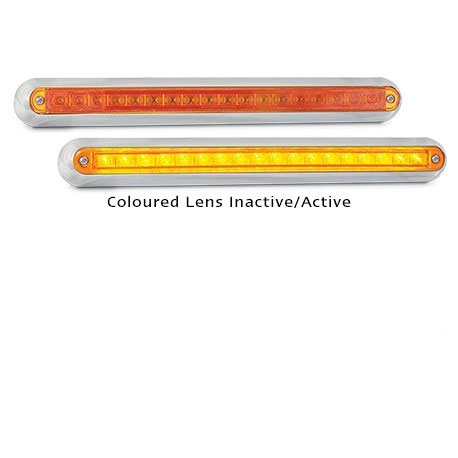

380CA12 12V, Coloured Lens, Blister
380CCA12 12V, Clear Lens,Blister
.
LED Qty 18
Cable 40cm cable
.
Draw Ind
@13.8V 0.18A
@28V 0.10A
.
Approvals Function Category  CRN
ADR Indicator 6/00 2a 39470
ADR (CC) Indicator 6/00 2a 43990
CTA (CC) Indicator 6/00 2a CTA-060129
Function Reverse
Part No. Order Separate Parts to Make up
380W12 Lamp only
380B1C Bracket Only
.
LED Qty 18
Cable 40cm cable
.
Draw Ind
@13.8V 0.14A
@28V 0.09A
.
Approvals Function Category  CRN
Nil Reverse Nil Nil
