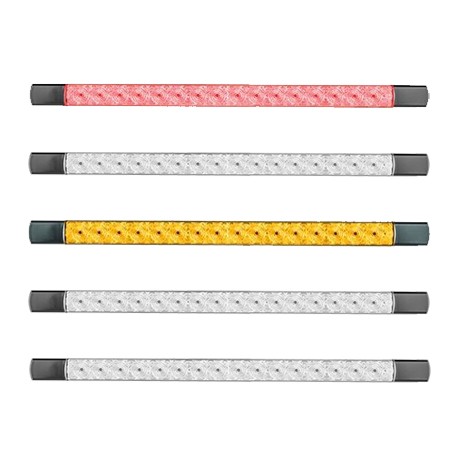

530 Series

Reference: 530 Series

Features / Specifications

  • ADR Australian Road Approved
  • Low Profile Slimline Design
  • Black End Caps
  • IP67 Rated
  • 12 Volt Only
  • 530mm x 25mm x 10mm
  • 5 Year Warranty

Fitting Instructions

Surface mount. Remove end caps fix to flat surface with screws supplied then refit end caps. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Rear Indicator
Part No.
530RC12B Clear Lens, Bulk
.
LED Qty 16
Cable 300mm cable
.
Draw Stop Tail
@13.8V 0.29A 0.02A
.
Approvals Function Category CRN
ADR Stop/Tail 49/00 49766
CTA Stop/Tail 49/00 CTA-049766
Function Rear Indicator
Part No.
530R12 Coloured Lens, Blister
.
LED Qty 16
Cable 300mm cable
.
Draw Stop Tail
@13.8V 0.29A 0.02A
.
Approvals Function Category CRN
ADR Stop/Tail 49/00 49766
CTA Stop/Tail 49/00 CTA-049766
Function Rear Indicator
Part No.
530AC12B Clear Lens, Bulk
.
LED Qty 16
Cable 300mm cable
.
Draw Indicator
@13.8V 0.33A
.
Approvals Function Category CRN
ADR Indicator 6/00 49764
CTA Indicator 6/00 CTA-049764
Function Rear Indicator
Part No.
530A12 Coloured Lens, Blister
.
LED Qty 16
Cable 300mm cable
.
Draw Indicator
@13.8V 0.33A
.
Approvals Function Category CRN
ADR Indicator 6/00 49764
CTA Indicator 6/00 CTA-049764
Function Reverse
Part No.
530W12 Clear Lens, Blister
.
LED Qty 16
Cable 300mm cable
.
Draw Reverse
@13.8V 0.16A
.
Approvals Function Category CRN
ADR Reverse 1/00 49765
CTA Reverse 1/00 CTA-049765
