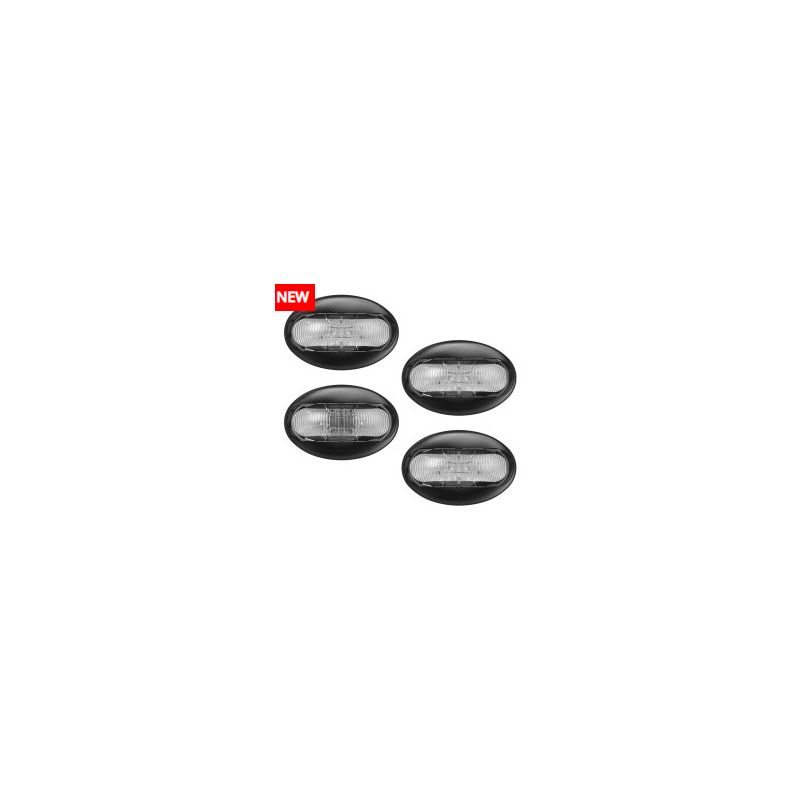

50 Series

Reference: 50 Series

Features / Specifications

  • Retrofit the same shape and design
  • Industry Standard Mounting Holes
  • Clip-in lens concealed screws
  • ADR Road approved
  • IP67 100% Waterproof
  • Multi-voltage 12-24 Volt
  • 60mm x 39.5mm x 32mm

Fitting Instructions

Surface Mount - Screw Fix

Mount the bracket horizontally onto a flat surface, run wires through the back, and clip the lens into place. For mounting instructions, please refer to ADR 13/00.
Lens Removal: Using your thumb, push the rear of the lens out to release it from the bracket.

Wire Colours: Brown - Power, Yellow - Indicator, White - Earth.

Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Rear End Outline Marker
Part No.
50RM 40cm cable, Blister Single
50RMCSB 20cm cable/plug, Single Bulk
. .
.
LED Qty 2
Cable 40cm/20cm with plug
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function CTA
ADR Rear End 061622
Function Side Direction
Part No.
50AM 40cm cable, Blister Single
50AMCSB 20cm cable/plug, Single Bulk
. .
.
LED Qty 2
Cable 40cm/20cm with plug
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function CTA
ADR Side Direction 061600
Function Side Marker
Part No.
50ARM 40cm cable, Blister Single
50ARMCSB 20cm cable/plug, Single Bulk
.
.
LED Qty 2
Cable 40cm/20cm with plug
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function CTA
ADR Side Marker 061621
Function Front End Outline Marker
Part No.
50WM 40cm cable, Blister Single
50WMCSB 20cm cable/plug, Single Bulk
. .
.
LED Qty 2
Cable 40cm/20cm with plug
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function CTA
ADR Front End 061620
