Features / Specifications
|
Fitting InstructionsSurface mount horizontally. Remove the stainless steel bezel and fit the lamp with screws, then clip it back into place. Please refer to ADR 13/00 for mounting instructions.
|
| Download Data Sheet SHOP NOW |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|

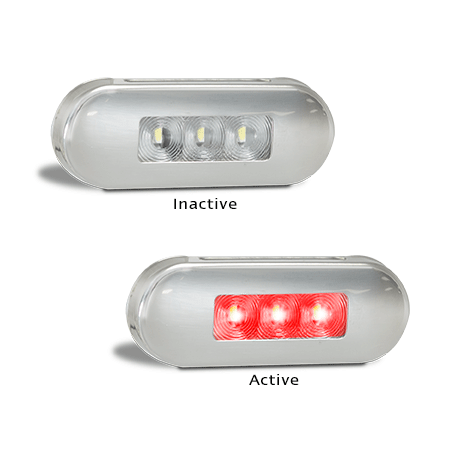

| Function | Rear end outline marker |
|||
 |
||||
| Part No. | HD Harness | |||
| 86RM | 12-24 Volt, Bare Wires, Single Blister | |||
| 86RMB | 12-24 Volt, Bare Wires, Single Bulk | |||
| 86RMCSB | 12-24 Volt, CSB Plug, Single Bulk | ✓ | ||
| . | ||||
| LED Qty | 3 | |||
| Cable | 15cm (Bare Wires), 20cm (CSB Plug) | |||
| Draw | @13.8V | @28V | ||
| 0.05A | 0.06A | |||
| Approvals | Function | Category | CRN | |
| ADR | Rear End | 49/00 | 46821 | |
| CTA | Rear End | 49/00 | CTA-046821 | |
| Function | Rear end outline marker |
||
 |
|||
| Part No. | HD Harness | ||
| 86RRM | 12-24 Volt, Bare Wires, Blister Pack | ||
| 86RRMB | 12-24 Volt, Bare Wires, Single Bulk | ||
| . | |||
| . | |||
| LED Qty | 3 | ||
| Cable | 15cm (Bare Wires) | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Rear End | 49/00 | 48251 |
| CTA | Rear End | 49/00 | CTA-048251 |

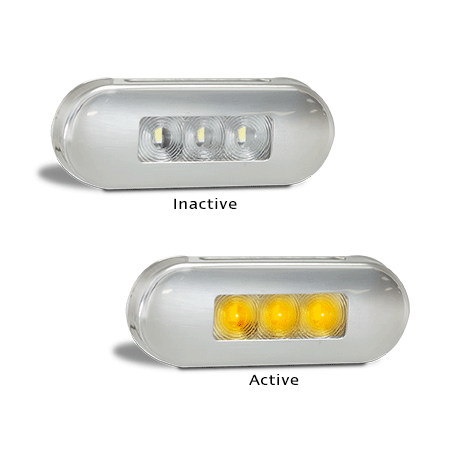

| Function | Side marker |
||
 |
|||
| Part No. | HD Harness | ||
| 86AM | 12-24 Volt, Bare Wires, Blister Pack | ||
| 86AMB | 12-24 Volt, Bare Wires, Single Bulk | ||
| 86AMCSB | 12-24 Volt, CSB Plug, Single Bulk | ✓ | |
| . | |||
| LED Qty | 3 | ||
| Cable | 15cm (Bare Wires), 20cm (CSB Plug) | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Marker | 74/00, 45/01 | 46827 |
| CTA | Marker | 74/00 | 061261 |
| Function | Side marker |
||
 |
|||
| Part No. | HD Harness | ||
| 86AAM | 12-24 Volt, Bare Wires, Blister Pack | ||
| 86AAMB | 12-24 Volt, Bare Wires, Single Bulk | ||
| . | |||
| . | |||
| LED Qty | 3 | ||
| Cable | 15cm (Bare Wires) | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Marker | 74/00, 45/01 | 48250 |
| CTA | Marker | 74/00 | CTA-048250 |
| Function | Side marker |
||
 |
|||
| Part No. | HD Harness | ||
| 86ARM | 12-24 Volt, Bare Wires, Blister Pack | ||
| 86ARMB | 12-24 Volt, Bare Wires, Single Bulk | ||
| 86ARMCSB | 12-24 Volt, CSB Plug, Single Bulk | ✓ | |
| . | |||
| LED Qty | 2 | ||
| Cable | 15cm (Bare Wires), 20cm (CSB Plug) | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Marker | 45/01 | 48024 |
| CTA | Marker | 45/01 | CTA-048024 |

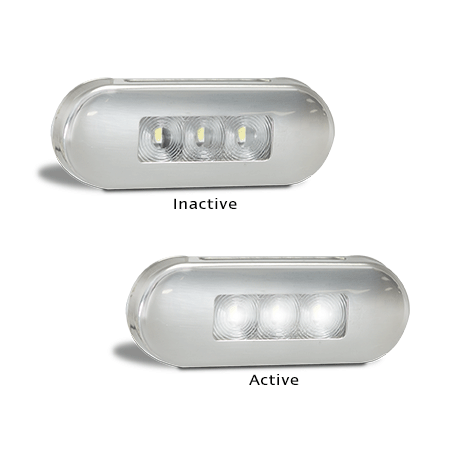

| Function | Front end outline marker |
||
 |
|||
| Part No. | HD Harness | ||
| 86WM | 12-24 Volt, Bare Wires, Blister Pack | ||
| 86WMB | 12-24 Volt, Bare Wires, Single Bulk | ||
| 86WMCSB | 12-24 Volt, CSB Plug, Single Bulk | ✓ | |
| . | |||
| LED Qty | 3 | ||
| Cable | 15cm (Bare Wires), 20cm (CSB Plug) | ||
| Draw | @13.8V | @28V | |
| 0.01A | 0.01A | ||
| Approvals | Function | Category | CRN |
| ADR | Front End | 49/00 | 46897 |
| CTA | Front End | 49/00 | CTA-046897 |
