181 Series
  • 181 Series

181 Series

Reference: 181 Series



Features / Specifications

  • Mini Recessed Markers
  • Low Profile
  • ECE Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 28mm round x 5mm

Fitting Instructions

Mount onto flat surface. Drill 20mm hole for cutout and push lamp with
rubber housing into the cutout hole. Please refer to ADR 13/00.
Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Rear End Outline Marker
Part No.  HD Harness
181RME 12-24 Volt, Bare Wires, Single Blister
181RMCSB 12-12 Volt, CSB Plug, Single Bulk ✓
.
LED Qty 3
Cable 20cm (Bare Wires/CSB Plug)
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function Approval No.
ECE Rear End R1-E9-02.6257
CTA Rear End CTA-060272

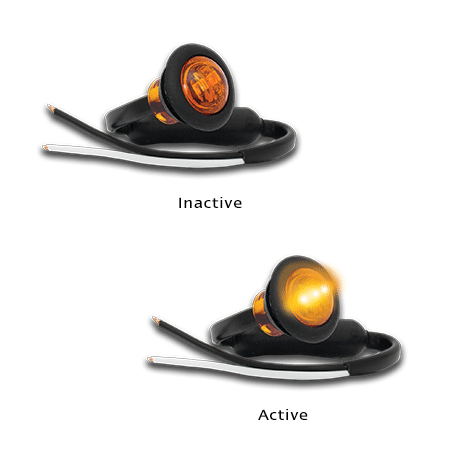

Function Side Marker
Part No.  HD Harness
181AME 12-24 Volt, Bare Wires, Single Blister
181AMCSB 12-24 Volt, CSB Plug, Single Bulk ✓
.
LED Qty 3
Cable 20cm (Bare Wires/CSB Plug)
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function Approval No.
ECE Side Marker SM1-E9-00.1005
CTA Side Marker CTA-060271

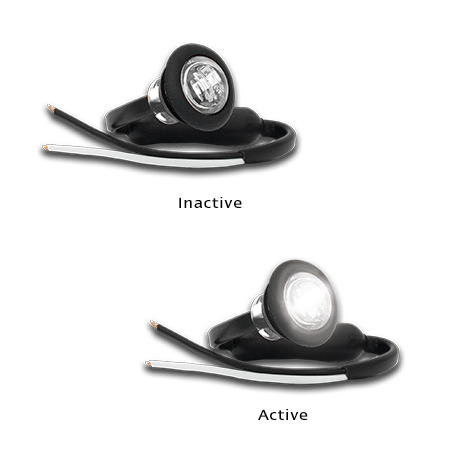

Function Front End Outline Marker
Part No.  HD Harness
181WME 12-24 Volt, Bare Wires, Blister Single
181WMCSB 12-24 Volt, CSB Plug, Single Bulk ✓
.
LED Qty 3
Cable 20cm (Bare Wires/CSB Plug)
Draw @13.8V @28V
0.03A 0.03A
Approvals  Function Approval No.
ECE Front End A-E9-02.6258
CTA Front End CTA-060286
