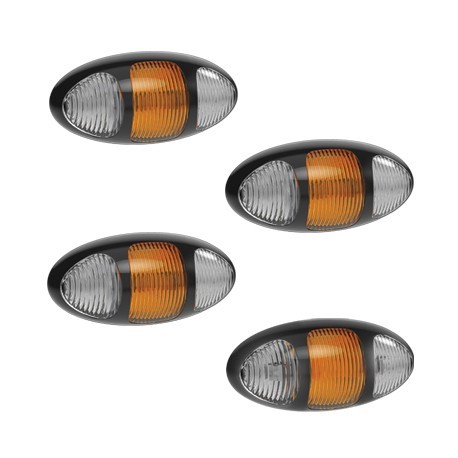

97 Series

Reference: 97 Series

Features / Specifications

  • Innovative New Design
  • Dual Function Indicator & Marker
  • Cat 5 Side Direction Indicator
  • IP67 Rated
  • 12-24 Multivolt
  • 5 Year Warranty

Fitting Instructions

Base Mount - Clip in Lamp

Drill a 10mm hole for the wire and plug, then surface mount the base using the screws provided. Clip lamp in place. Please refer to ADR 13/00 for mounting instructions.

Accessory: P/N. 97BB - Black Bezel, P/N. 97BKT - Black Rail Bracket (Reflector)

Wire Colour: Brown - Marker, Yellow - Indicator/Supplementary Indicator
Download Data Sheet

SHOP NOW

Technical Drawings

97 Series_Tech Drawing.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers




Function Amber/Red Side Marker & CAT5 Side Direction Indicator

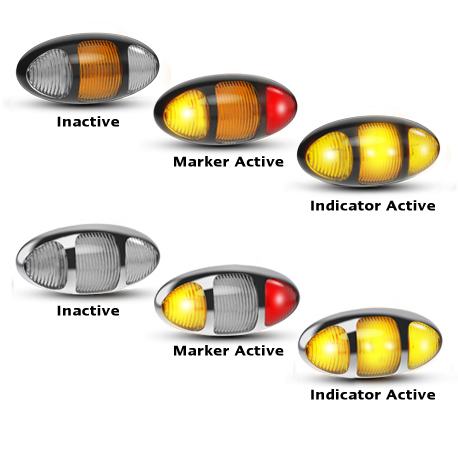

97 Amber Red Cover_.jpg
Part No. HD Harness
97ARIM Black Bezel, Bare Wires, Single Blister
97ARIMB Black Bezel, Bare Wires Single Bulk
97ARIMCSB Black Bezel, CSB Plug, Single Bulk ✓
97ARIM-DT4P-E Black Bezel, Deutsch Plug, Single Bulk ✓
97CARIM Chrome Bezel, Bare Wires, Single Blister
97CARIMB Chrome Bezel, Bare Wires, Single Bulk
97CARIMCSB Chrome Bezel, CSB Plug, Single Bulk ✓
.
Voltage 12-24 Volt
LED Qty 14
Cable 40cm (Bare Wires), 40cm (CSB/Deutsch Plug)
Draw  Marker Indicator
@13.8V 0.09A 0.01A
@28V 0.02A 0.02A
.
Approvals Function Category CRN
ADR Side Marker 74/00
 51324
ADR Side Direction Indicator 6/00/5 51307
CTA Side Marker/Indicator 74/00, 6/00/5 CTA-060023
Function Rear End Outline Marker/Supplementary Side Direction Indicator

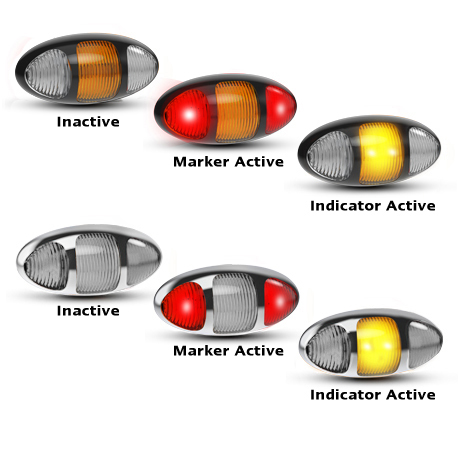

97 Red Cover_.jpg
Part No. HD Harness
97RIM Black Bezel, Bare Wires, Single Blister
97RIMB Black Bezel, Bare Wires, Single Bulk
97RIMCSB Black Bezel, CSB Plug, Single Bulk ✓
97CRIM Chrome Bezel, Bare Wires, Single Blister
97CRIMB Chrome Bezel, Bare Wires, Single Bulk
97CRIMCSB Chrome Bezel, CSB Plug, Single Bulk ✓
.
.
Voltage 12-24 Volt
LED Qty 14
Cable 40cm (Bare Wires), 40cm (CSB Plug)
Draw  Marker Indicator
@13.8V 0.06A 0.03A
@28V 0.06A 0.03A
.
Approvals Function Approval No.
ECE Rear End E9*7R02/27*23715*00
CTA Rear End 49/00 CTA-060119
.
Function Amber Side Marker & CAT5 Side Direction Indicator

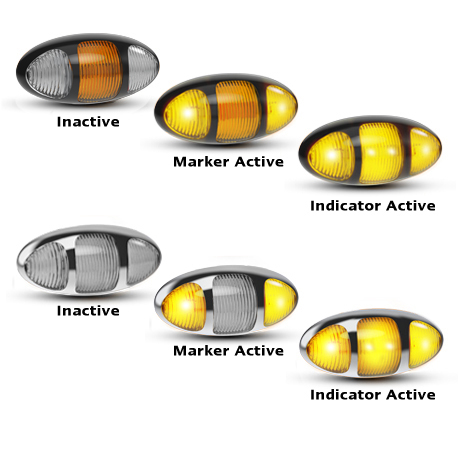

97 Amber Cover_.jpg
Part No. HD Harness
97AIM Black Bezel, Bare Wires, Single Blister
97AIMB Black Bezel, Bare Wires, Single Bulk
97CAIM Chrome Bezel, Bare Wires, Single Blister
97CAIMB Chrome Bezel, Base Wires, Single Bulk
97CAIMCSB Chrome Bezel, CSB Plug, Single Bulk ✓
.
Voltage 12-24 Volt
LED Qty 14
Cable 40cm (Bare Wires), 40cm (CSB Plug)
Draw  Marker Indicator
@13.8V 0.09A 0.01A
@28V 0.02A 0.02A
.
Approvals Function Approval No.
ECE Side Marker E9*91R00/17*23282*00
ECE Side Indicator E9*6R01/29*23282*00
CTA Side Marker/Indicator CTA-060121
Function Front End Outline Marker/Supplementary Side Direction Indicator

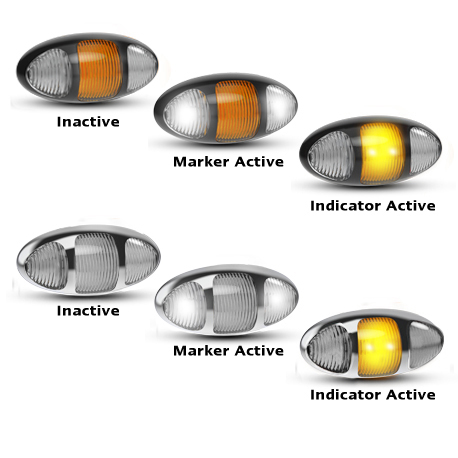

97 White Cover_.jpg
Part No. HD Harness
97WIMB Black Bezel, Bare Wires, Single Bulk
97WIMCSB Black Bezel, CSB Plug, Single Bulk ✓
97CWIM Chrome Bezel. Bare Wires, Single Blister
97CWIMB Chrome Bezel, Bare Wires, Single Bulk
97CWIMCSB Chrome Bezel, CSB Plug, Single Bulk ✓
.
Voltage 12-24 Volt
LED Qty 14
Cable 40cm (Bare Wires), 40cm (CSB Plug)
Draw  Marker Indicator
@13.8V 0.06A 0.06A
@28V 0.06A 0.06A
.
Approvals Function Approval No.
ECE Front End E9*7R02/27*23716*00
CTA Front End 49/00 CTA-060118
.
