1004 Series
  • 1004 Series

1004 Series

Reference: 1004 Series

Features / Specifications

  • Rubber housing design
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 101mm x 66mm x 82mm
  • 193mm x 169mm x 66mm

Fitting Instructions

Fix to a flat surface, amber facing forward and red facing to the back with two bolts supplied.

Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function

Side marker
Part No.
1004ARM 12-24V, Blister
.
LED Qty 6
Cable 40cm
Draw @13.8V @28V
Red 0.03A 0.06A
Amber 0.04A 0.06A
Approvals  Function Category CRN
ADR Side Marker 45/01 43129
CTA Side Marker 45/01 CTA-060201
Function

Red/amber side marker
Right-hand side
Part No.

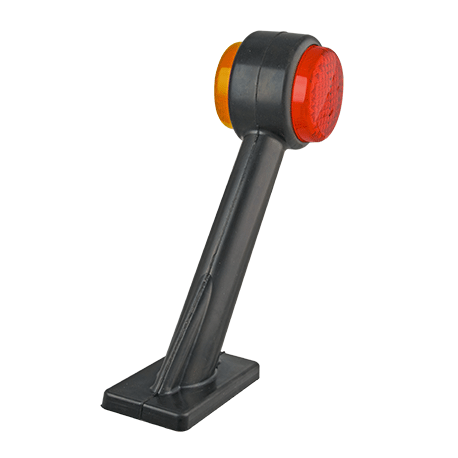

1004R 12-24V, Single Bulk
.
.
LED Qty 6
Cable 40cm from the lens
Draw @13.8V @28V
Red 0.03A 0.06A
Amber 0.04A 0.06A
Approvals  Function Category CRN
ADR Side Marker 45/01 43129
CTA Side Marker 45/01 CTA-060201
Function

Red/amber side marker
Left-hand side
Part No.

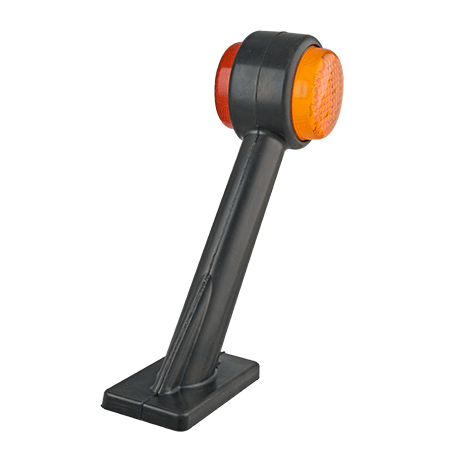

1004L 12-24V, Single Bulk
.
.
LED Qty 6
Cable 40cm from the lens
Draw @13.8V @28V
Red 0.03A 0.06A
Amber 0.04A 0.06A
Approvals  Function Category CRN
ADR Side Marker 45/01 43129
CTA Side Marker 45/01 CTA-060201
