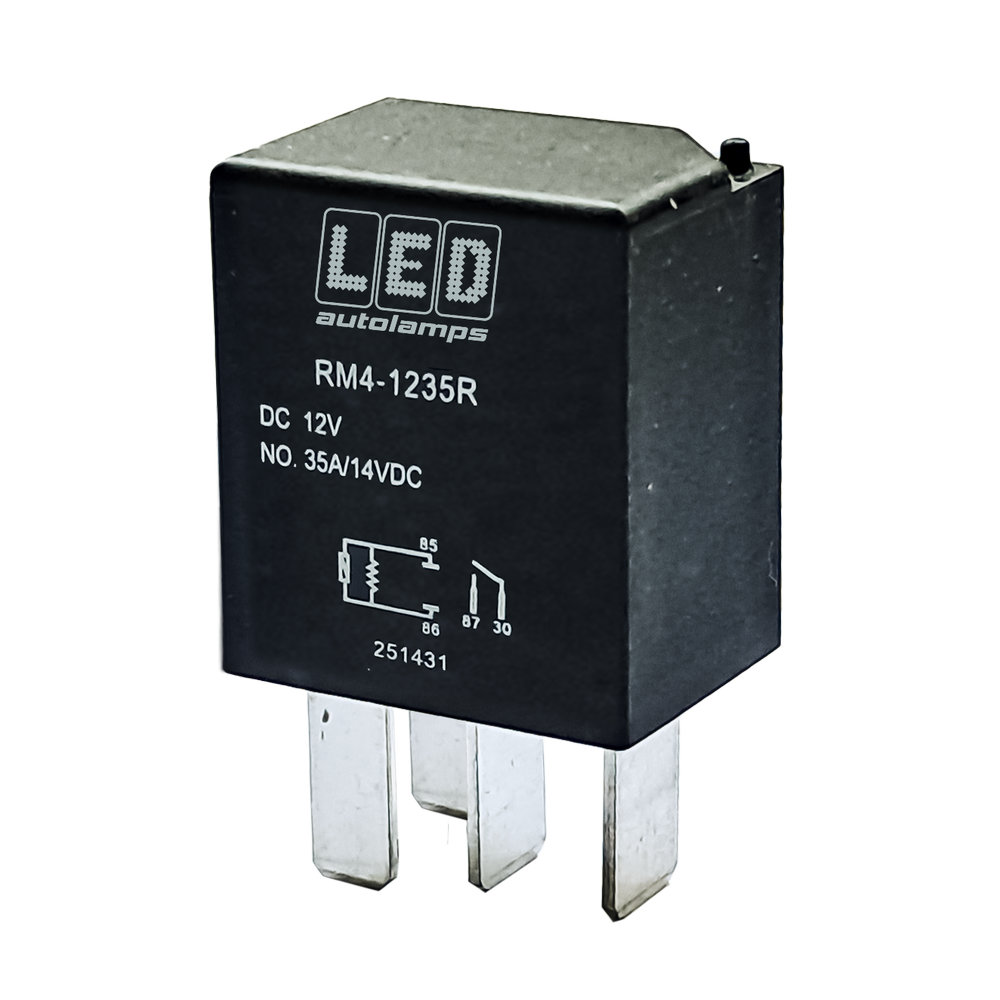

Micro 4 Pin 12V 35A Off/On SPST Relay

Features / Specifications

• 6.3mm pwr term, 4.8mm sw term
• SPST, resistor protected
• Coil 1.5W
• NO = 35A
• Resistor suppressed protects vehicle electronics whilst not being polarity sensitive
• OEM quality, Silver contacts: AgSnO2
• Engage: 70% of V, Disengage: 20% of V
• Copper braid load conductor • ISO9001, QS9000, ISO/T16949
• Supplied with snap in bracket
• Approvals: CE, UL, CSA, TUV, IP67 Sealed
• H 26mm x D 23mm x W 15.5mm
• 1 Year Warranty
