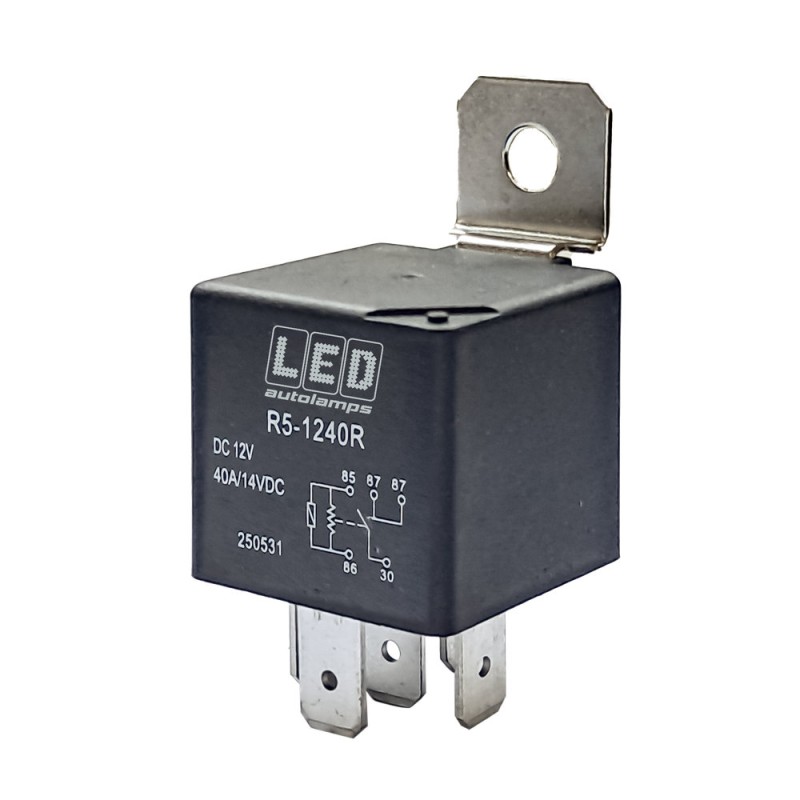

5 Pin 12V 40A Off/On SPST Relay

Features / Specifications

• 6.3mm terminals
• SPST, resistor protected
• Coil 1.6W
• NO = 40A dual out
• Resistor suppressed protects vehicle electronics whilst not being polarity sensitive
• OEM quality, Silver contacts: AgSnO2
• Engage: 70% of V, Disengage: 20% of V
• Copper braid load conductor
• ISO9001, QS9000, ISO/T16949
• Supplied with snap in bracket
• CE, UL, CSA, TUV Approved
• H 24.5mm x D 26.5mm x W 26.5mm
• 1 Year Warranty
