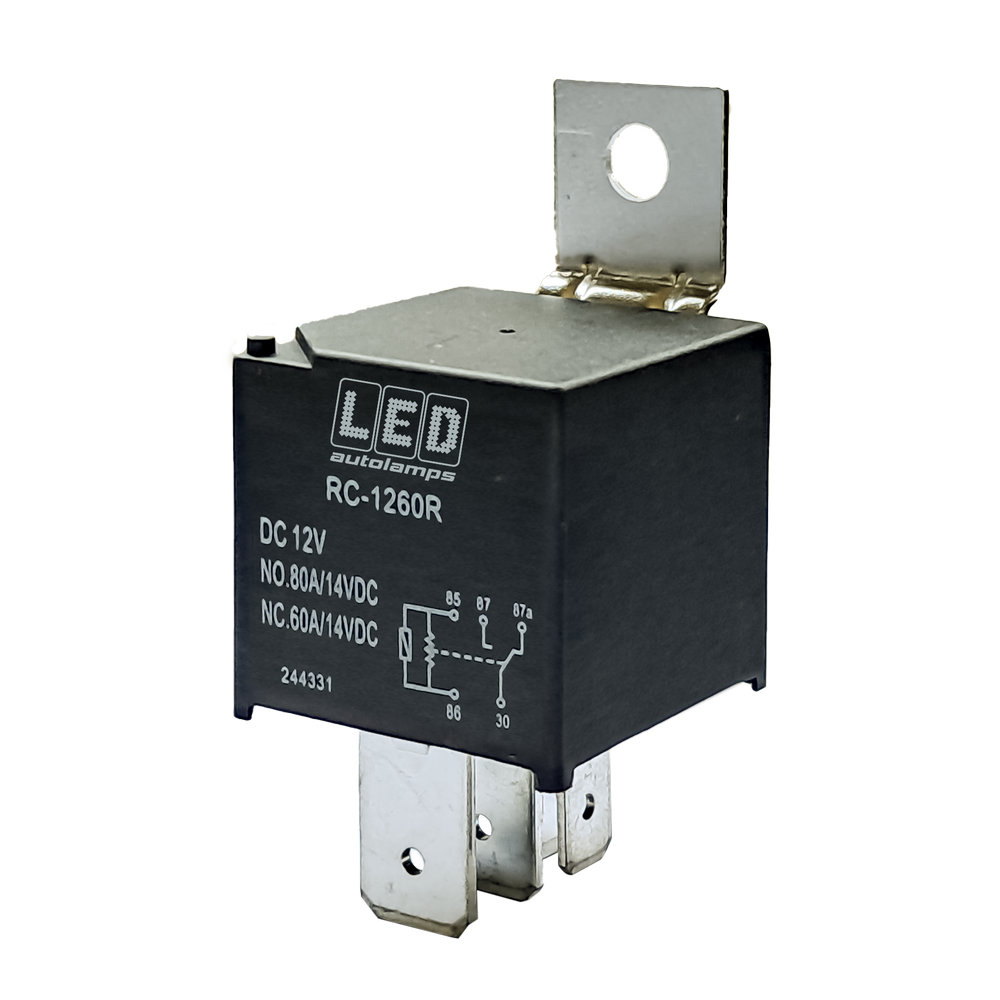

5 Pin 12V 60/80A Change Over Relay

Features / Specifications

• 6.3mm terminals
• SPDT, resistor protected
• NC = 60A, NO = 80A
• Coil 1.8W
• Resistor suppressed protects vehicle electronics whilst not being polarity sensitive
• OEM quality, Silver contacts: AgSnO2
• Engage: 70% of V, Disengage: 20% of V
• Copper braid load conductorISO9001, QS9000, ISO/T16949
• Supplied with snap in bracket
• Approvals: CE, UL, CSA, TUV
• H 26.5mm x D 29mm x W 29mm
• 1 Year Warranty
