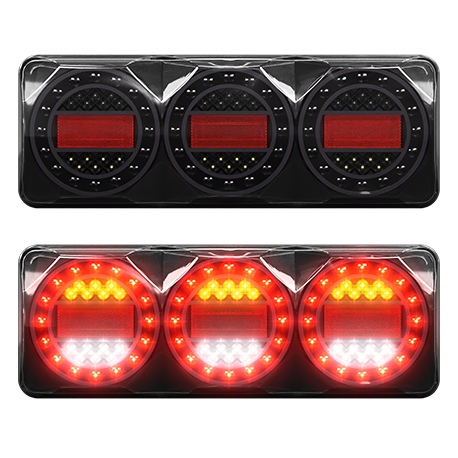

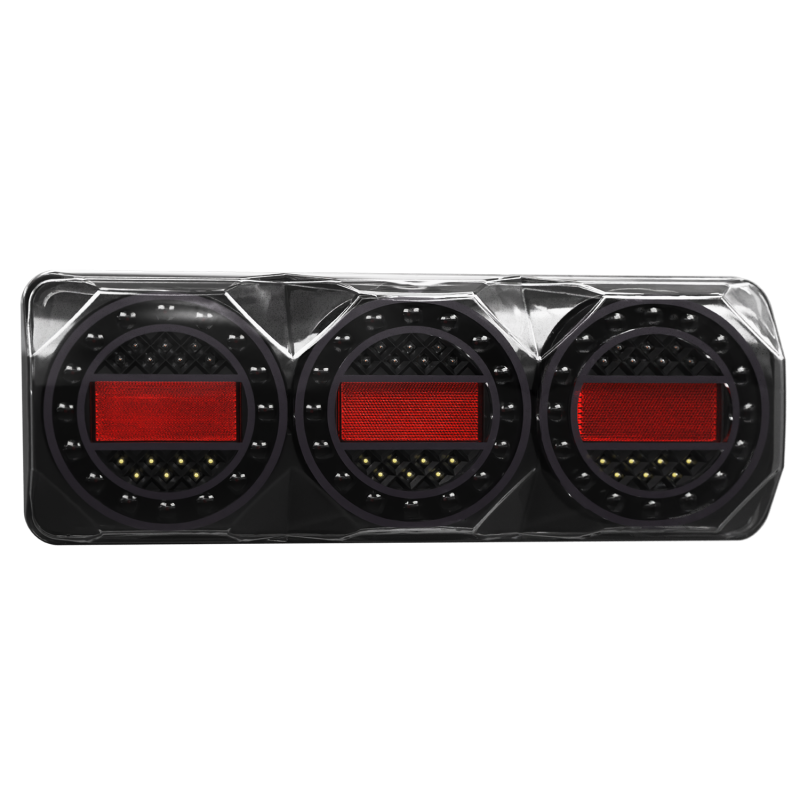

Maxilamp SHADOW SERIES
Reference:
Maxilamp SHADOW SERIES
Features / Specifications
|
Fitting InstructionsHorizontally mount onto a flat surface using bolts at the rear of the lamp. Run the wires through the hole in the fixing surface. Wire Colour: Red - Stop, Brown - Tail, Yellow - Indicator, Black - Reverse, White - Earth Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator/Reverse/Reflector | |||
 |
||||
| Part No. | ||||
| MaxilampC3XRWSS | Bolt Mount, Single Blister | |||
| MaxilampC3XRWSSB | Bolt Mount, Single Box | |||
| SOMAXSSI2LR/450B | Bolt Mount, Single Box 450mm cable | |||
| . | ||||
| LED Qty | 90 | |||
| Cable | 40cm or 450mm cable | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.54A | 0.08A | 0.77A | 0.67A |
| @28V | 0.27A | 0.04A | 0.35A | 0.34A |
| Approvals | Function | CTA | ||
| ADR/ECE | 6/00, 47/00, 49/00, 1/00 | 062176 | ||
