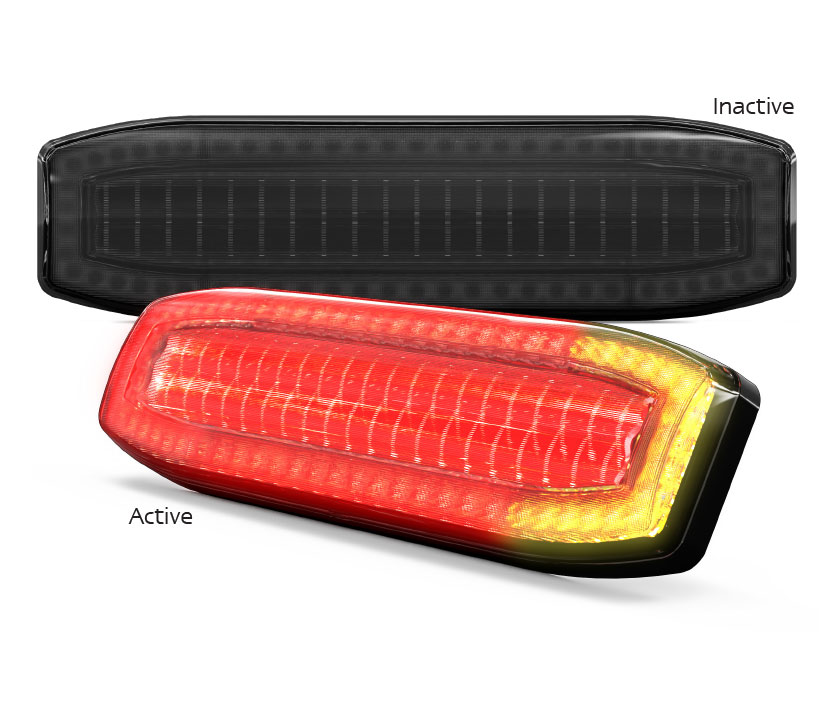

387 Series REDBELLY

Reference: 385 Series

Features / Specifications

  • 3D Optical Technology
  • ECE Road Approved
  • ECE R10 for Electrical Interference
  • IP67 Rated
  • Large Harness Compatible
  • Dual-Voltage 12/24 Volt
  • 386mm x 104mm x 38mm
  • 5-Year Warranty

Fitting Instructions - Bolt Surface Mount

Horizontally mount onto a flat surface using bolts at the rear of the lamp. Run the wires through the hole in the fixing surface. Wire Colour: Red - Stop, Brown - Tail, Yellow - Indicator, Black - Reverse, White - Earth

Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings


Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers

Function Stop/Tail/Indicator
Part No.
387ARRMB 12/24 Volt, Bare Wires, Single Box
.
LED Qty 104
Cable 40cm (Bare Wires)
Draw Stop Tail Ind
@13.8V  TBA TBA TBA
@28V TBA TBA TBA
Approvals CTA Approval Functions
ECE 062171 49/00, 6/00
Function Stop/Tail/Indicator/Rev
Part No.
387ARWM 12/24 Volt, Bare Wires, Single Blister
387ARWMB 12/24 Volt, Bare Wires, Single Box
LED Qty 104
Cable 37-40cm (Bare Wires)
Draw Stop Tail Ind Rev
@13.8V  TBA TBA TBA TBA
@28V TBA TBA TBA TBA
Approvals CTA Approval Functions
CTA 062171 49/00, 6/00, 1/00

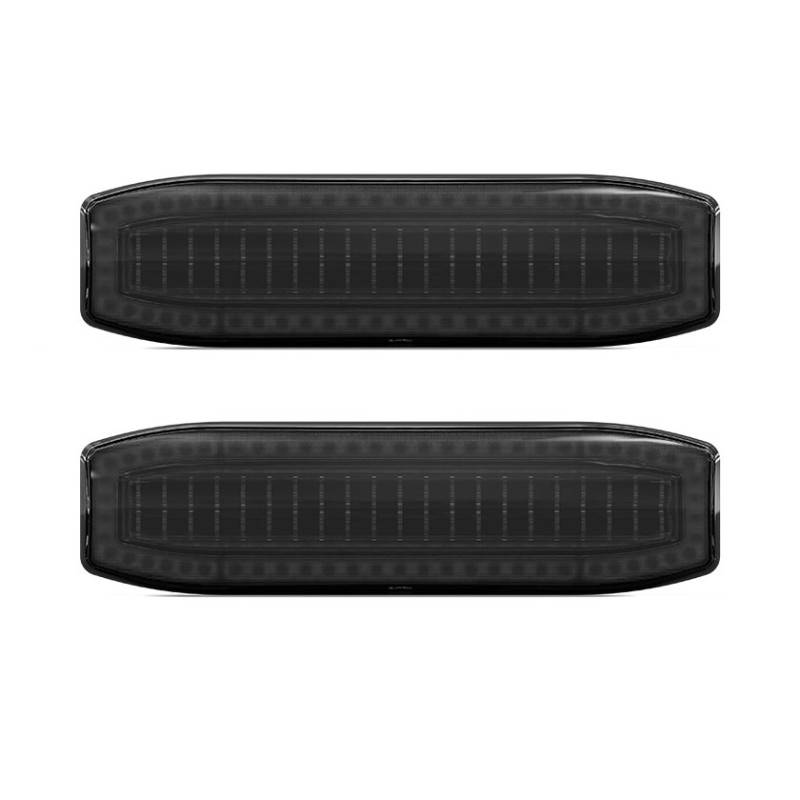

385 Series
