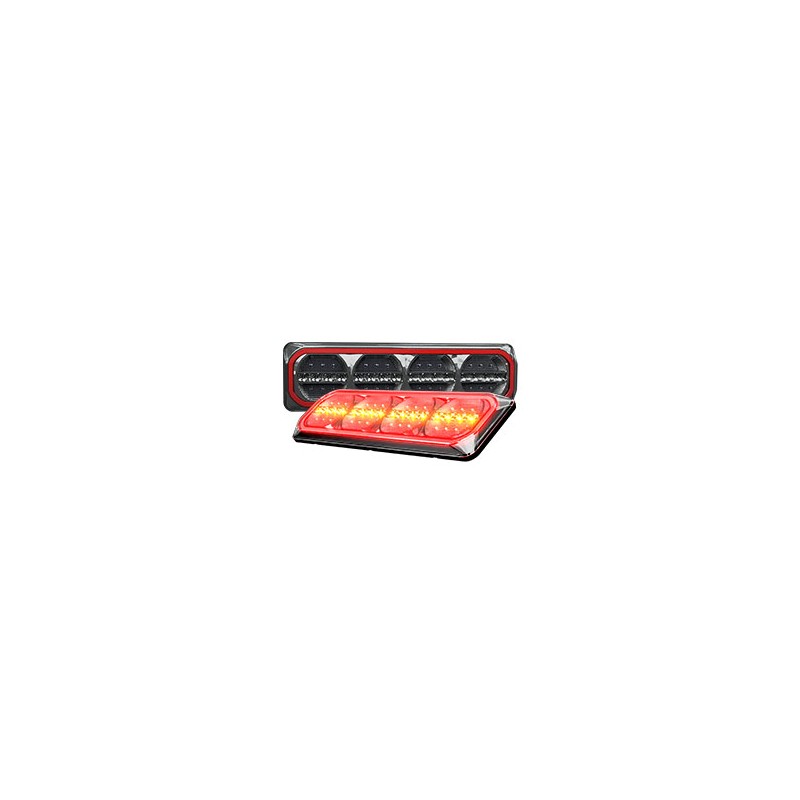

520 Series Non-Sequential
Reference:
520 Series Non Sequential
Features / Specifications
|
Fitting InstructionsSeparate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Wire Colours: Brown - Tail, Red - Stop, Yellow - Indicator, White - Earth. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |

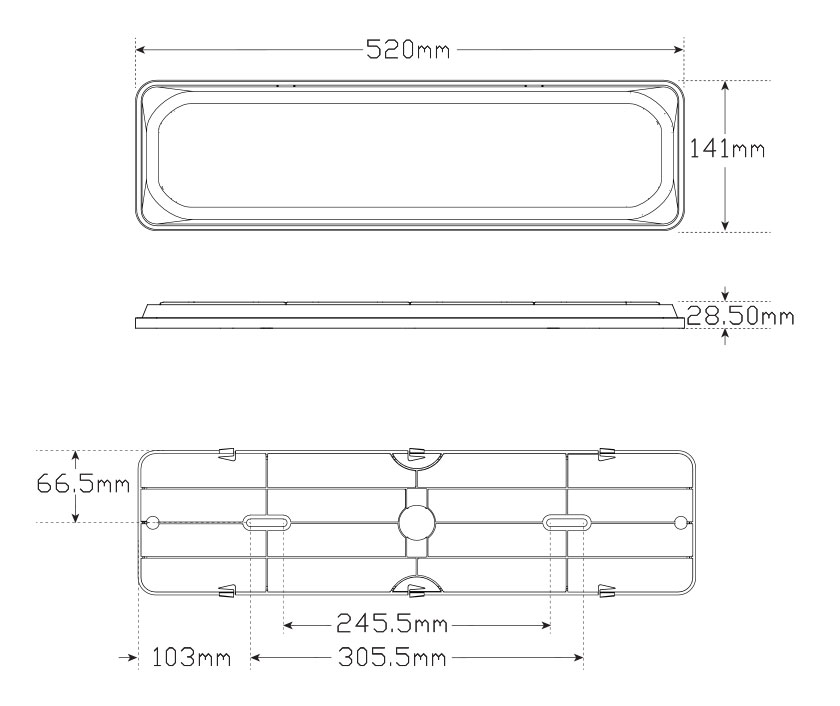

Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator | ||
|
|
|||
| Part No. | |||
| 520ARRMNSB | LHS or RHS, Bulk | ||
| . | |||
| LED Qty | 120 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.20A | 0.30A | 0.30A |
| @28V | 0.10A | 0.20A | 0.20A |
| Approvals | Function | Approval No. | |
| ADR | Stop/Tail/Indicator | 061817 | |
