• J2 Series

J2 Series

Reference: J2 Series

Features / Specifications

  • Dual Lamp Jumbo Design
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 400mm x 130mm x 45mm
  • 5 Year Warranty

Fitting Instructions

Horizontally mount using fixing points. Refer to ADR 13/00 for mounting.


Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Stop/Tail/Indicator
Part No. HD Harness
J2BARM 12-24V, Bare Wires, Single Blister
J2BARMLCSB 12-24V, CSB Plug, LHS, Single Bulk ✓
J2BARMRCSB 12-24V, CSB Plug, RHS, Single Bulk ✓
J2BARM-DT6P-E 12-24V, Deutsch Plug, Single Bulk ✓
.
LED Qty 48
Cable 1.2m (Bare Wires), 20cm (CSB/Deutsch Plug)
.
Draw Stop Tail Ind
@13.8V 0.47A 0.04A 0.42A
@28V 0.27A 0.203A 0.28A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 42965
ADR Indicator 6/00/2A 42964
ADR Reflector 47/00 42966

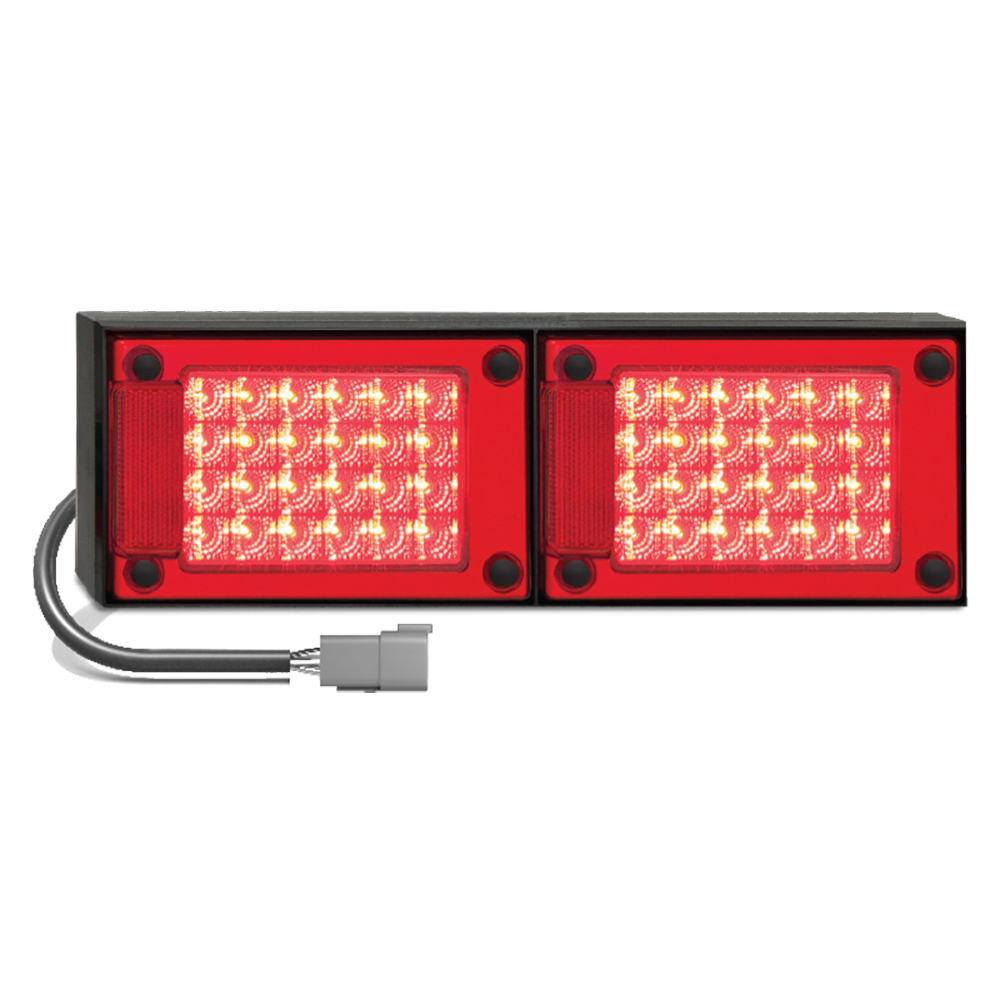

Function Stop/Tail
Part No. HD Harness
J2BRRM-DT6P 12-24V, Deutsch Plug, Single Bulk ✓
.
.
.
.
LED Qty 48
Cable 20cm (Deutsch Plug)
.
Draw Stop Tail
@13.8V 0.47A 0.04A
@28V 0.27A 0.203A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 42965
ADR Reflector 47/00 42966
.
