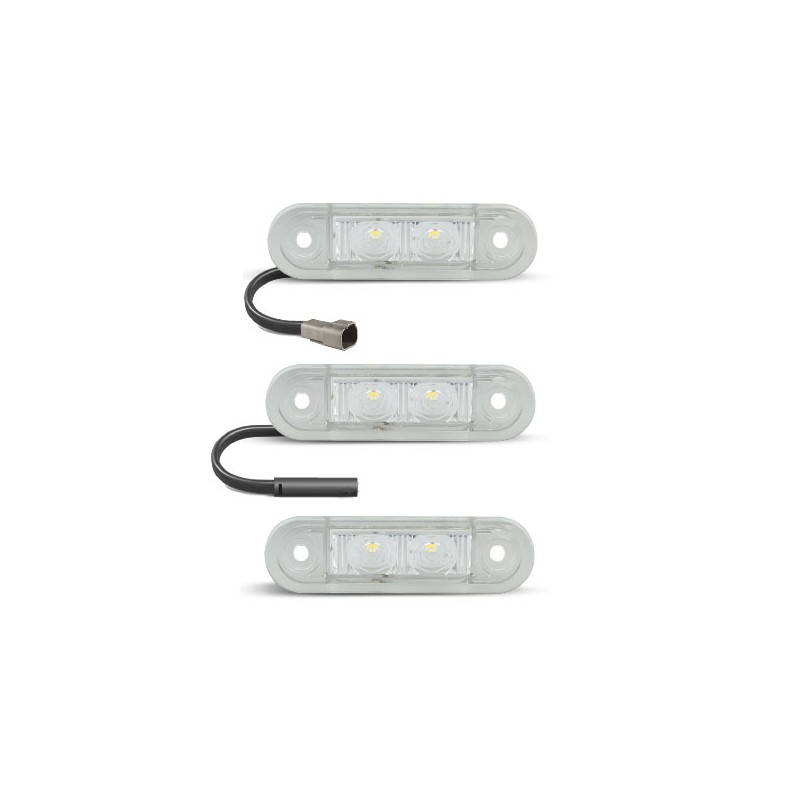

7922 Series

Reference: 7922 Series

Features / Specifications

  • Perfect for pull-out Ute tray draws
  • Low profile - only 3mm
  • 20cm cable
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5-Year Warranty
  • 79mm x 22mm x 3mm

Fitting Instructions

Recess mount two lamps facing down, 30mm from the surface and 50mm above the top edge of the licence plate lamp. Two lamps are required for ADR compliance. Refer to the mounting instruction diagram below. Cut-out size 45mm x 17mm. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Licence Lamp
Part No.

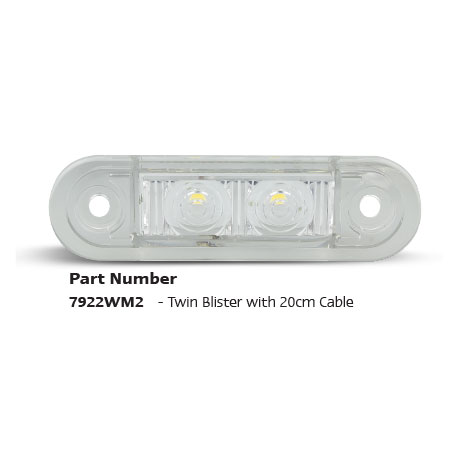

7922WM2 12-24 Volt, Blister, 20cm Cable
LED Qty 2
Cable 23cm
Approvals  Function Approval No.
ECE 48/00 CTA-061877
Function Licence Lamp
Part No.

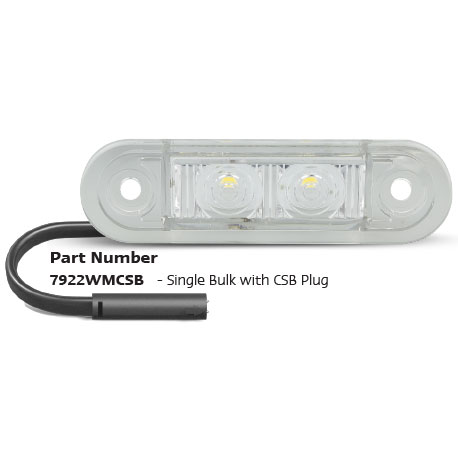

7922WMCSB 12-24 Volt, Bulk, 10cm Cable with Plug
LED Qty 2
Cable 10cm with Plug
Approvals  Function Approval No.
ECE 48/00 CTA-061877
Function Licence Lamp
Part No.

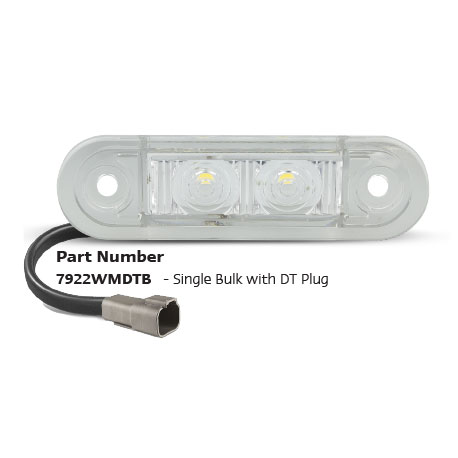

7922WMDTB 12-24 Volt, Bulk, 10cm Cable with Plug
LED Qty 2
Cable 10cm with Plug
Approvals  Function Approval No.
ECE 48/00 CTA-061877
