Strip Lamps
Reference:
Strip Lamps
Features / Specifications
|
Fitting InstructionsRemove the bezel at each end and surface mount using two screw points. Run wires through the hole in the mounting surface and refit the bezel by clicking into place. |
|
|
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Strip Lamp |
 |
|
| Part No. | Clear Lens |
| 1016 | 12 Volt, Single blister |
| 1016/24 | 24 Volt, Single blister |
| Lumen | Clear - 46lm |
| LED Qty | 16 SMD |
| Cable | 50cm |
| Draw | |
| @13.8V | 0.11A |
| @28V | 0.05A |
| Function | Strip Lamp |
 |
|
| Part No. | Clear Lens |

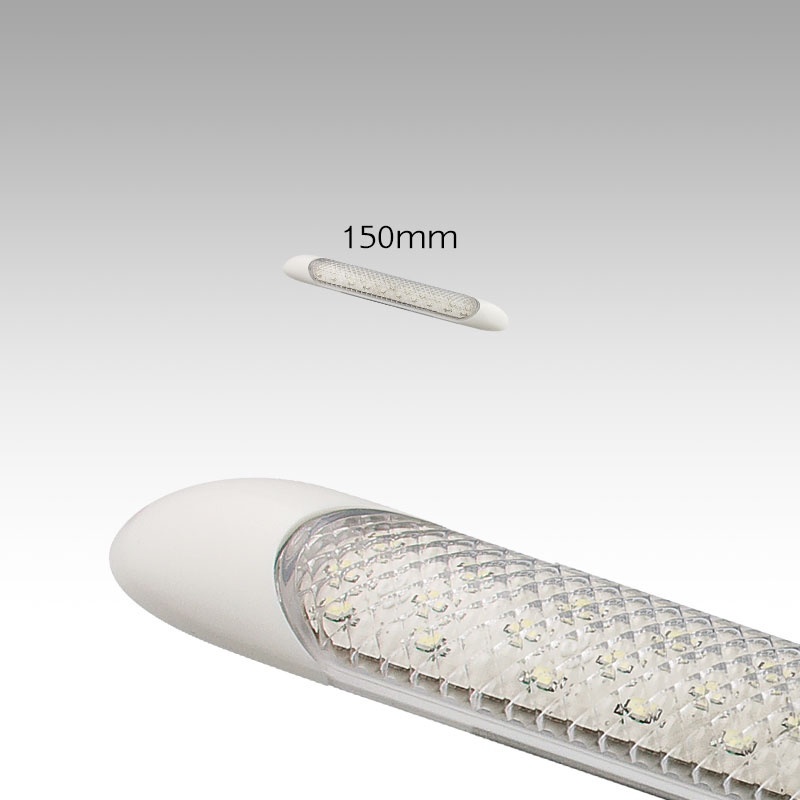

| 1031 | 12 Volt, Single blister |
| 1031/24 | 24 Volt, Single blister |
| Lumen | Clear - 90lm |
| LED Qty | 31 SMD |
| Cable | 50cm |
| Draw | |
| @13.8V | 0.17A |
| @28V | 0.07A |
| Function | Strip Lamp |
 |
|
| Part No. | Clear Lens |

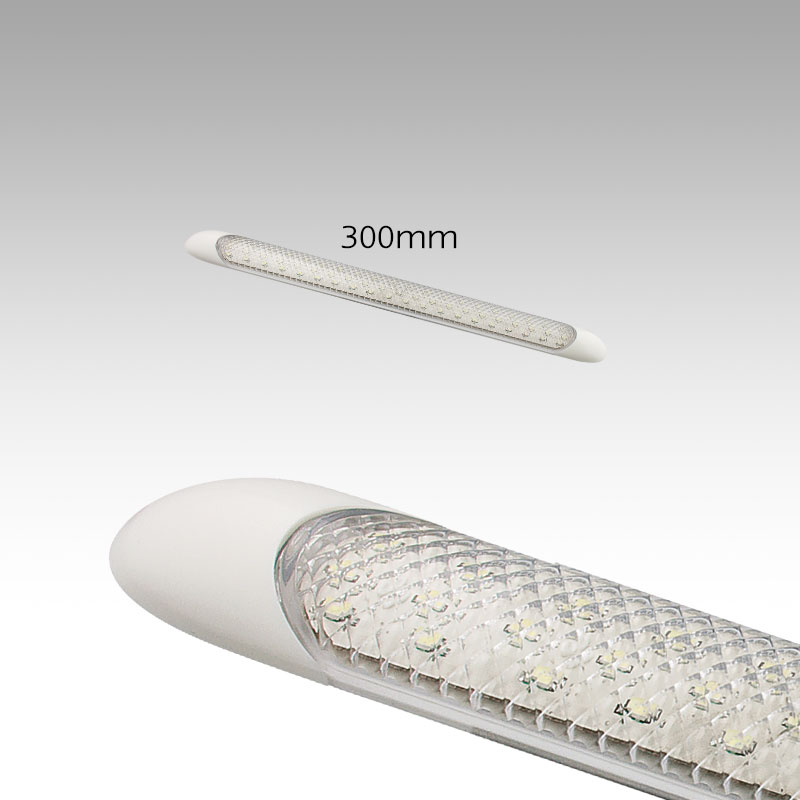

| 1061 | 12 Volt, Single blister |
| 1061/24 | 24 Volt, Single blister |
| Lumen | Clear - 340lm |
| LED Qty | 61 SMD |
| Cable | 50cm |
| Draw | |
| @13.8V | 0.31A |
| @28V | 0.17A |
| Function | Strip Lamp |
 |
|
| Part No. | Clear Lens |

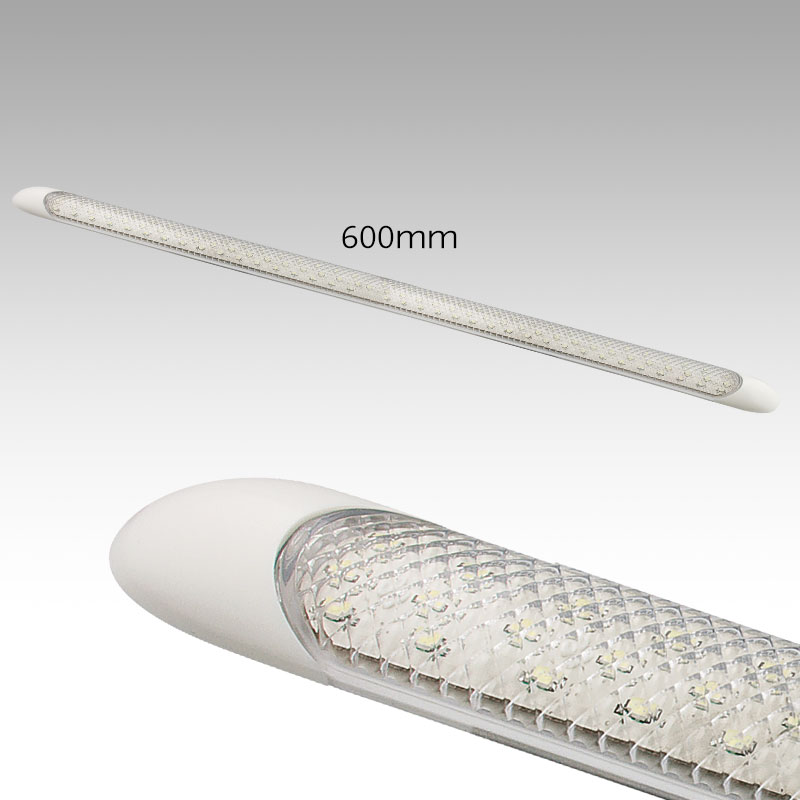

| 10121 | 12 Volt, Single blister |
| 10121/24 | 24 Volt, Single blister |
| Lumen Clear Lens | Clear - 670lm |
| LED Qty | 121 SMD |
| Cable | 50cm |
| Draw | |
| @13.8V | 0.58A |
| @28V | 0.31A |
