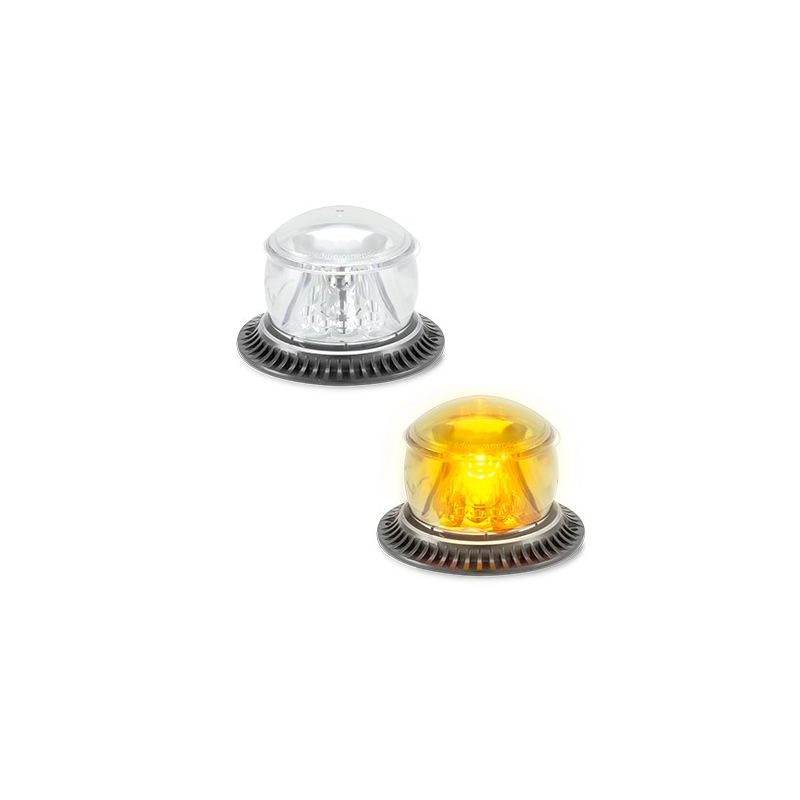

Mini Beacons
Reference:
Mini Beacons
Features / Specifications
|
Fitting InstructionsRun wires through hole in fixing surface or from the side of the base. Attach with screws provided; ensure foam gasket is between lamp and fixing surface. |
| Download Data Sheet SHOP NOW |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | SAE Amber Beacon |
 |
|
| Part No. | |
| MB12AMC | Clear Lens, Single blister |
| Size | 96mm round x 64mm |
| LED Qty | 12 x 1 watt |
| Cable | 40cm |
| Flash Rate | 45 FPM |
| Draw | |
| @13.8V | 1.00A |
| @28V | 1.00A |
| Approvals | Category |
| SAE | J845 Class 1 |
