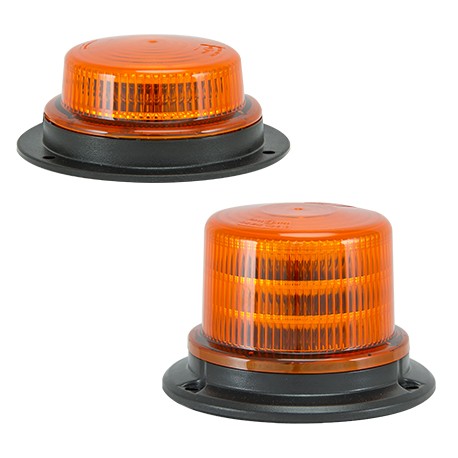

LRB Series
Reference:
Rotating Pattern
Features / Specifications
|
Fitting InstructionsRun wires through hole in fixing surface or from the side of the base. Attach with screws provided; ensure foam gasket is between lamp and fixing surface. |
Technical Drawings |
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Rotating Effect Beacon |
 |
|
| Part No. | |
| LRB130 | Single blister |
| Size | 130mm round x 53mm |
| LED Qty | 20 |
| Cable | 40cm |
| Draw | |
| @13.8V | 0.11A |
| @28V | 0.07A |
| Approvals | Category |
| SAE J845 | Class 3 |
| Function | Rotating Effect Beacon |
 |
|
| Part No. | |
| LRB145 | Single blister |
| Size | 145mm round x 96mm |
| LED Qty | 24 |
| Cable | 40cm |
| Draw | |
| @13.8V | 0.45A |
| @28V | 0.22A |
| Approvals | Category |
| SAE J845 | Class 2 |
Rotating Pattern
