80 Series
Reference:
80 Series
Features / Specifications
|
Fitting InstructionsFit to existing bullbar applications. Please refer to ADR 13/00 for mounting instructions. |
Technical Drawings
|
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function |

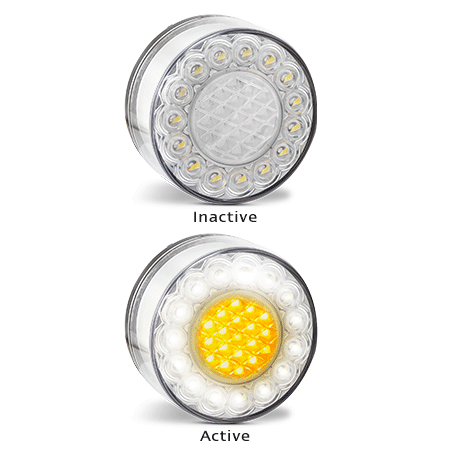

Front Indicator/Marker |
||
 |
|||
| Part No. | |||
| 80AW | 12 Volt, Blister | ||
| . | |||
| LED Qty | 34 | ||
| Cable | 40cm | ||
| Draw | Ind | DRL | Marker |
| @13.8V | 0.32A | TBA | 0.03A |
| Approvals | Function | Approval No. | |
| ECE | Front Ind | 1-E9-01.11725 | |
| ECE | Marker | A-E9-02.11725 | |
| ECE | DRL | RL-E9-00.11725 | |
| CTA | Indicator/Marker/DRL | CTA-060217 | |
| Function |
*To be used for the |
||
 |
|||
| Part No. | |||

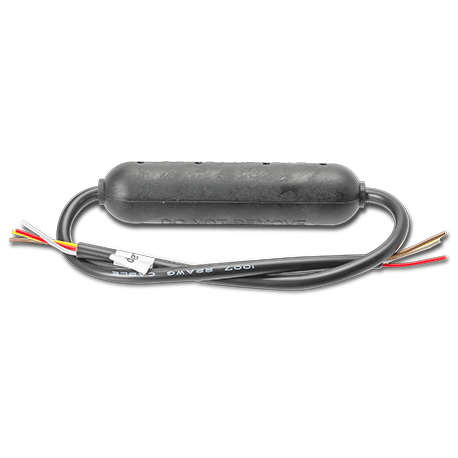

| DRLHOTDOG-2 | Daytime Running Lamp Converter | ||
| . | |||
|
Enables 80AW and 80AWB to |
|||
| Cable | 19cm on each side | ||
80 Series
