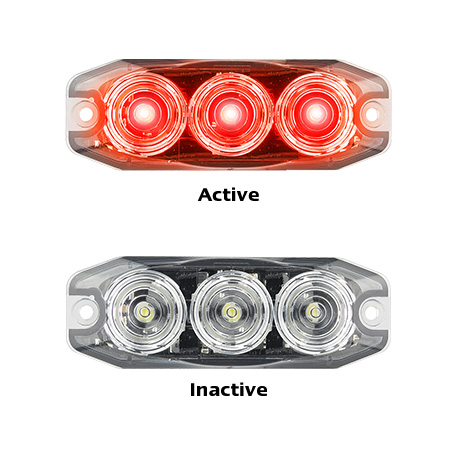

120033 Series Surface Mount
Reference:
120033 Series Surface Mount
Features / Specifications
|
Fitting InstructionsRemove backing from 3M tape on back of lens, run wires through hole in mounting surface. Apply firm hand pressure to ensure lamp adhesion. Use provided screws to secure lamp further. Refer to ADR 13/00 for mounting instructions. |
Technical Drawings |
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Centre High Mount Stop Lamp | ||
 |
|||
| Part No. | |||
| SO120033RHM-8M | 12-24V, Clear Lens, Bulk | ||
| . | |||
| LED Qty | 3 | ||
| Cable | 8m | ||
| . | |||
| Draw | Stop | ||
| @13.8V | 0.11A | ||
| @28V | 0.08A | ||
| . | |||
| Approvals | Function | Category | CRN |
| ADR | High Level Brake | 60/00 | TBA |
| CTA | High Level Brake | 60/00 | CTA-060259 |
