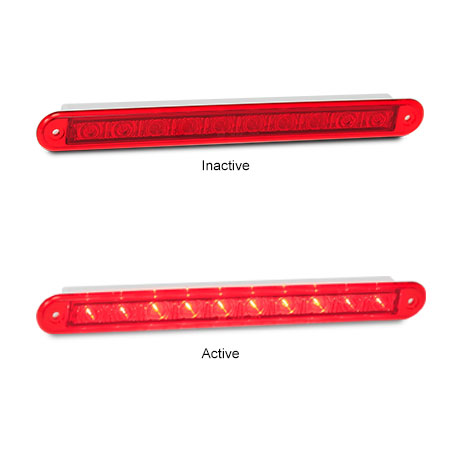

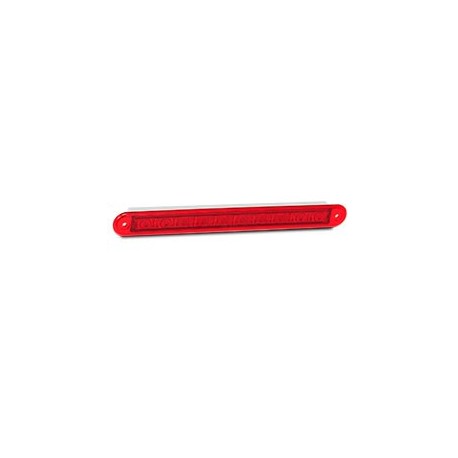

235 Series Recessed Mount
Reference:
235 Series Recessed Mount
Features / Specifications
|
Fitting InstructionsRecessed - Mount onto a flat surface horizontally. Push the lamp and grommet into cutout (cut out 203mm x 19mm) in the mounting surface, run wires through the back (Ensure that the red wire is used for the stop function, ensure the brown wire is taped off.) and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions. |
SHOP NOW |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Centre High Mount Stop Lamp | ||
 |
|||
| Part No. | |||
| 235R12 | 12V, Coloured Lens, Bulk | ||
| . | |||
| LED Qty | 10 | ||
| Cable | 40cm | ||
| . | |||
| Draw | Stop | ||
| @13.8V | 0.14A | ||
| . | |||
| Approvals | Function | Category | CRN |
| ADR | High Level Brake | 60/00 | 44427 |
| CTA | High Level Brake | 60/00 | CTA-044427 |
