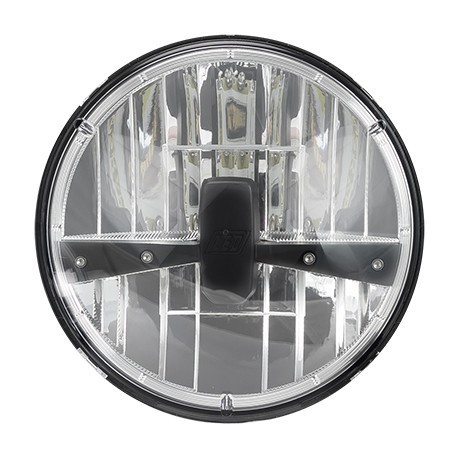

7" Head Lamps

Reference: 7inch Head Lamps

Features / Specifications

  • Modern Design
  • High Beam 1x 17W LED
  • Low Beam 4x 3W LED
  • Position Lamp 2x SMD LEDs
  • ECE Approved
  • Robust Die Cast Alloy Design
  • Voltage Range 11-32 Volt
  • IP67 Rated

Fitting Instructions

Fix to mounting surface using stainless steel bolts supplied.



Lighting Diagram

Download Data Sheet

SHOP NOW

Technical Drawings

HL175 Tech Drawing.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function 7" High/Low/Park Beam Headlight
Part No.

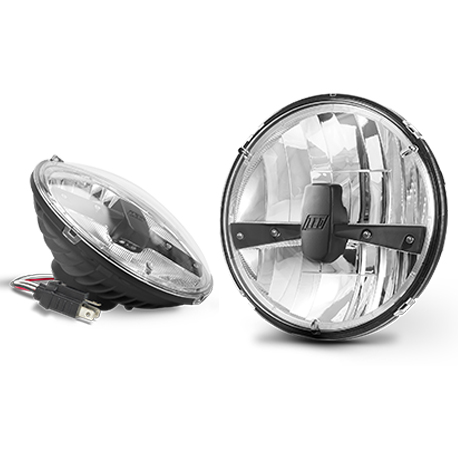

HL175 Multivolt 11-32 Volt, Twin Blister
MC175 Multivolt 11-32 Volt, Single Blister
.
LED Qty High 1x17W, Low 4x3W,
Position 2x SMD
Lumen Low Beam - 944lm Effective
High Beam - 1422lm Effective
Colour Temp 5300K - 6500K
Cable 120mm with H4 Plug
Draw Low Beam High Beam
@13.8V 1.28A 2.23A
@28V 0.56A 1A
Approvals Function Approval No.
ECE High/Low Beam E6-112R-010658
ECE Front Position E6-7R-020658
ECE High/Low/Front Position CTA-060258
