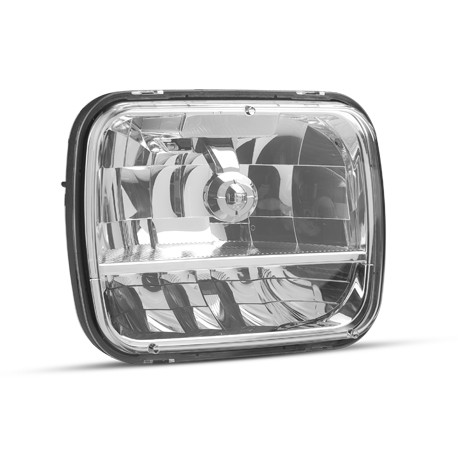

7x5" Head Lamps

Reference: 7x5inch Head Lamps

Features / Specifications

  • 7"x5" High Power Headlamp
  • High Beam 4x3W LED 1096lm
  • Low Beam 1 x 15W LEDs 570lm
  • Park Lamp 2 x 0.5W SMD
  • ECE Approved
  • Robust Die Cast Alloy Design
  • IP67 Rated
  • Voltage Range 11-32 Volt

Fitting Instructions

Retrofit to existing globe type 90mm projector headlamps.

Lighting Diagram
Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Park Lamp/Low Beam/High Beam
Part No.
HL165 Twin Blister
.
Lumen Low Beam 570lm, High Beam 1096lm
LED Qty Park 2 x SMD, Low 1x15W, High 4x3W
.
Cable 10cm with H4 Plug
Draw
@13.8V Low Beam 1.15A High Beam 2.14A
@28V Low Beam 0.55A High Beam 1.02A
.
Approval Function Approval No.
ECE High/Low Beam E6-112R-010806
ECE Front Position E6-7R-020806
CTA High/Low Beam, Front Position CTA-060257
