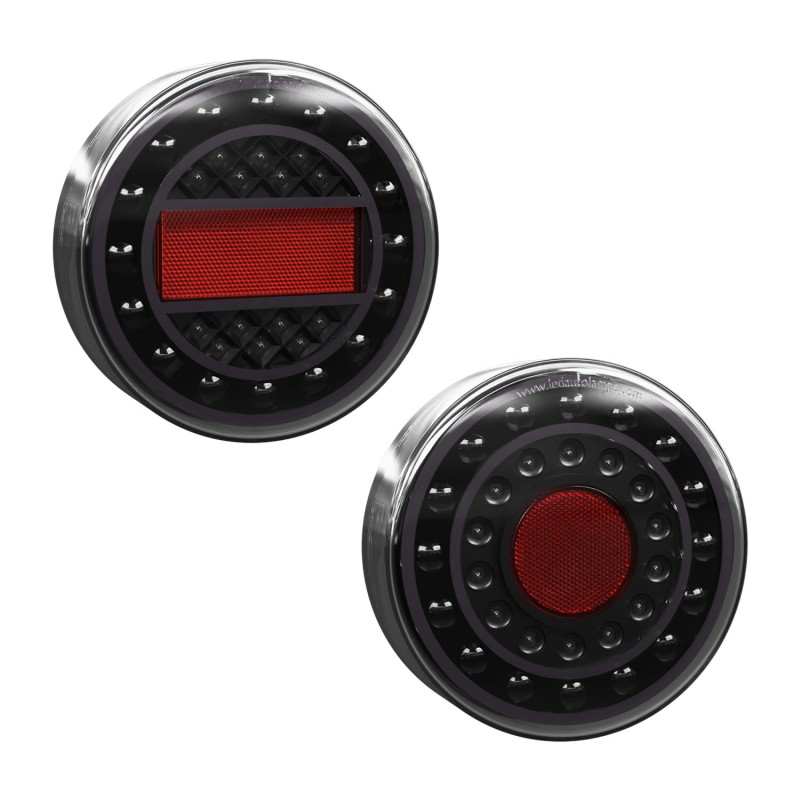

Maxilamp Single SHADOW SERIES

Reference: Maxilamp Single Shadow Series

Features / Specifications

  • Blackout Design
  • ADR/ECE approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 7-Year Warranty
  • 125mm Round x 40mm
  • Sold Individually

Download Data Sheet

SHOP NOW

Fitting Instructions

Mount horizontally on a flat surface using the bolts at the rear of the lamp. Run the wires through the hole in the fixing surface. Wire Colour: Red - Stop, Brown - Tail, Yellow - Indicator, White - Earth

Please refer to ADR 13/00 for mounting instructions.

Technical Drawings
Part Numbers
Function Stop/Tail/Indicator/Reflector
Part No.
MaxilampC1XRESS Clear Lens, Single Blister
.
LED Qty 30
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.30A  0.02A  0.30A
@28V 0.15A 0.03A 0.15A
Approvals Function CTA
ADR/ECE 49/00, 47/00,6/00 062176
Function Stop/Tail/Indicator/Reflector
Part No.
MaxilampC1XCESS Clear Lens, Single Blister
.
LED Qty 30
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.20A  0.02A  0.24A
@28V 0.11A 0.03A 0.14A
Approvals Function CTA
ADR/ECE 49/00, 47/00,6/00 062176
Maxilamp Single Shadow Series
