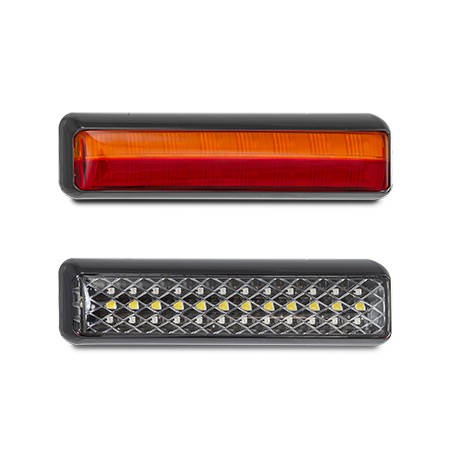

200/201 Series

Reference: 200/201 Series



Features / Specifications

  • Original Rectangular Design
  • Clip-in Replaceable Lens
  • Chrome Bracket as an Accessory
  • ADR Approved
  • IP67 Rated
  • Voltage 12/24 Volt
  • 200mm x 50mm x 28mm

Fitting Instructions

Horizontally, Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Part Numbers
Function Stop/Tail & Indicator
Part No.
Black Bkt
201BSTIM 12/24 Volt, Single Blister
.
LED Qty 16
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.13A  0.02A 0.13A
@28V 0.40A 0.03A 0.40A
Approvals Function Category CRN
ADR Stop 49/00 46885
ADR Tail 49/00 46885
ADR Indicator 6/00 46884
CTA Stop/Tail/Ind 49/00, 6/00 CTA-046885
Function Stop/Tail/Indicator/Reverse
Part No.
Black Bkt
200BIRSTME2 12/24 Volt, Twin Blister
.
LED Qty 36
Cable 40cm
Draw Stop Tail Ind Rev
@13.8V 0.29A  0.09A   0.19A  0.08A
@28V 0.16A 0.07A 0.07A 0.02A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.11524
ECE Indicator 2a-E9-01.11524
ECE Reverse AR-E9-00.11524
CTA Stop/Tail/Ind/Rev CTA-060232
