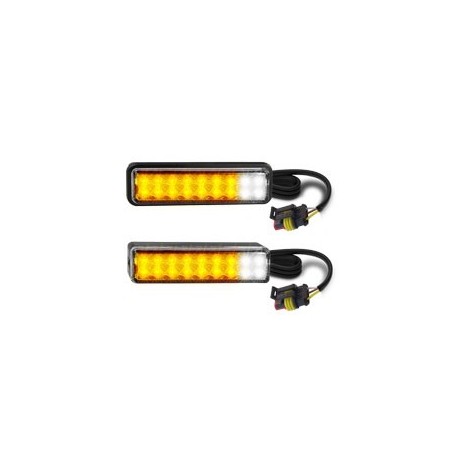

135AW Series with AMP Plug
Reference:
135AW Series with AMP Plug
Features / Specifications
|
Fitting InstructionsSurface mount horizontally surface mount with screws or plugs provided, run wires through the back & clip the lens into place. Recess mount horizontally with grommet (grommet sold separately), run wires through back & push the lens into place (cut out for grommet 133mm x 36mm). Refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Front Indicator/Position Lamp | |||
 |
||||
| Part No. | ||||
| 135AW-3AMP | 12 Volt, Bulk | |||
| . | ||||
| LED Qty | 18 | |||
| Cable | 40cm with AMP Plug | |||
| Draw | Indicator | Front Position | ||
| @13.8V | 0.25A | 0.04A | ||
| Approvals | Function | Category | CTA | |
| ECE | Front Indicator | 6/00 Cat1 | 060229 | |
| ECE | Position | 49/00 | 060229 | |
| . | ||||
| Function | Front Indicator/Position Lamp | |||
 |
||||
| Part No. | ||||
| 135AWG-3AMP | 12 Volt, Bulk | |||
| . | ||||
| LED Qty | 18 | |||
| Cable | 40cm with AMP Plug | |||
| Draw | Indicator | Front Position | ||
| @13.8V | 0.25A | 0.04A | ||
| Approvals | Function | Category | CTA | |
| ECE | Front Indicator | 6/00 Cat1 | 060229 | |
| ECE | Position | 49/00 | 060229 | |
| . | ||||
