284 Series with Resistors and DT Plug

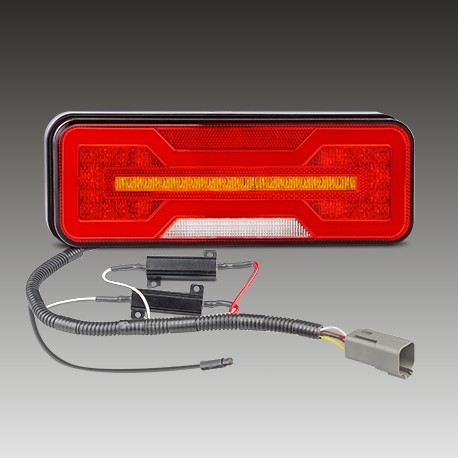

Reference: 284 Series w Resistors / DT Plug

Features / Specifications

  • Adapted to Fit Most Popular Brands of Vehicle Trays
  • Prewired with 2 x Load Resistors
    and Terminated with DT04-6P Male Connector
  • Combine with Applicable Patch Lead
  • IP67 Rated
  • 12 Volt Only
  • 5 Year Warranty
  • ECE Approved Lamp
  • 284mm x 100mm x 37mm

    NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.

Fitting Instructions

Surface mount using bolts in back of lamp, run wire and plug through 10mm hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class.
Download Data Sheet

Technical Drawings

284 Series Tech.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Stop/Tail/Indicator/Reverse
Part No.
SO284LHS Left Hand Side, Bulk
SO284RHS Right Hand Side, Bulk
.
LED Qty TBA
Cable 45cm, 2 x LR12, DT04-6P Male Plug
Draw Stop Tail Ind Rev
@13.8V  0.24A 0.03A 0.27A  0.17A

284 Series w Resistors / DT Plug
