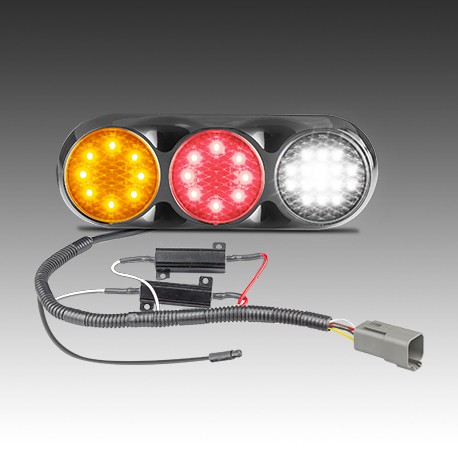

82 Series with Resistors and DT Plug

Reference: 82 Series w Resistors / DT Plug

Features / Specifications

  • Prewired with 2 x Load Resistors
    and Terminated with DT04-6P Male Connector
  • Combine with Applicable Patch Lead
  • IP67 Rated
  • 12 Volt
  • Clear Lens when Inactive
  • 5 Year Warranty
  • ECE Approved Lamp
  • 281mm x 101mm x 30mm

    NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.

Fitting Instructions

Horizontally mount bracket onto flat surface with screws provided, ensuring TOP markings are positioned above centre holes. Remove backing from 3M tape on back of lens, run wires through desired centre hole and align the locator nodule on edge of lens with the corresponding indentation on bracket. Apply firm hand pressure to ensure lamp adhesion. Repeat for each lens until all are installed securely. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius.


Download Data Sheet

Technical Drawings

82 Triples.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Stop/Tail/Indicator/Reverse
Part No.
SO82BARWCC2LR12 12 Volt, Bulk
.
LED Qty 32
Cable 45cm, 2 x LR12, DT04-6P Male Plug
Draw Stop Tail Ind Rev
@13.8V  0.1A 0.02A 0.19A 0.24A
Function Stop/Tail/Indicator/Reverse
Part No.

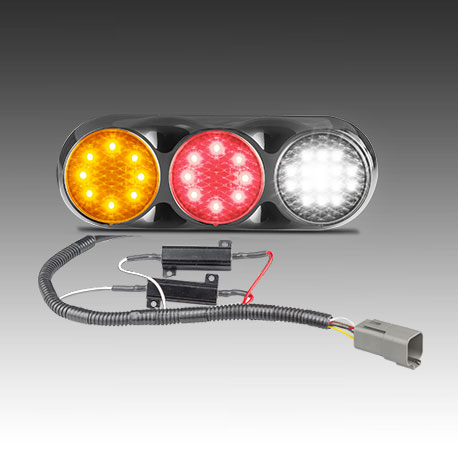

SO82BARWCC2LR12-1 12 Volt, Bulk
.
LED Qty 32
Cable 45cm, 2 x LR12, DT04-6P Male Plug
Draw Stop Tail Ind Rev
@13.8V  0.1A 0.02A 0.19A 0.24A
