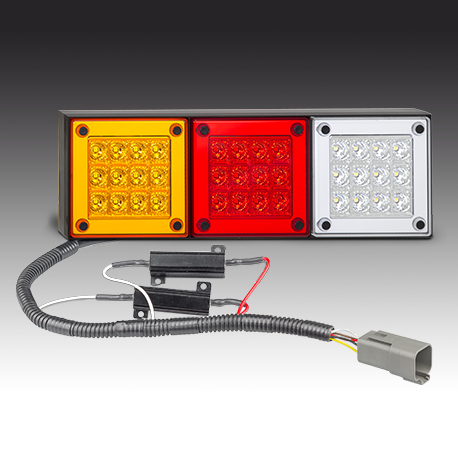

280 Series with Resistors and DT Plug

Reference: 280 Series Resistors / DT Plug

Features / Specifications

  • Adapted to Fit Most Popular Brands of Vehicle Trays
  • Prewired with 2 x Load Resistors
    and Terminated with DT04-6P Male Connector
  • Combine with Applicable Patch Lead
  • IP67 Rated
  • 12 or 24 Volt Options
  • 5 Year Warranty
  • ECE Approved Lamp
  • 282mm x 95mm x 28mm

    NOTE: When using load resistors in a vehicle that has lamp failure monitoring, failure of the lamp will not be detected.

Fitting Instructions

Horizontally surface mount using bolts in back of lamp, run wire and plug through hole in fixing surface. Load resistors must be mounted on metal surface, the module can reach temperatures of up to 170 Celsius. Please refer to ADR 13/00 for mounting instructions.

Patch Leads to suit the following vehicles; Ford Ranger, Mazda BT50, Isuzu D-Max, Toyota Landcruiser, Toyata Hilux, Mitsubishi Triton MN/MQ, Holden Colorado, Nissan Navara, Volkswagen Amarok, Mercedez-Benz X-Class.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Stop/Tail/Indicator/Reverse
Part No.
280ARWM2LR12/450 12 Volt, Bulk
280ARWM2LR24/450 24 Volt, Bulk
.
LED Qty 36
Cable 45cm, 2 x LR12, DT04-6P Male Plug
Draw Stop Tail Ind Rev
@13.8V  0.15A  0.02A 0.14A  0.17A
@28V 0.11A 0.03A 0.11A 0.13A
Function Stop/Tail/Indicator/Reverse
Part No.
280TARWM2LR12-450 12 Volt, Bulk
.
.
LED Qty 36
Cable 45cm, 2 x LR12, DT04-6P Male Plug
Draw Stop Tail Ind Rev
@13.8V  0.17A  0.01A 0.17A  0.19A
@28V 0.01A 0.01A 0.09A 0.11A
