100 Series

Reference: 100 Series

Features / Specifications

  • Original Square Series Design
  • Clip-in Replaceable Lens
  • Available in Black or Chrome
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 122mm x 122mm x 31mm
  •  5 Year Warranty

Fitting Instructions

Surface mount bracket, rum wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.

Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Stop/Tail
Part No.
Black Bkt
100R 12 Volt, Bulk
100RM 12-24V, Blister
100RMB 12-24V, Boxed, lens only
.
LED Qty 49
Cable 40cm cable
.
Draw Stop Tail
@13.8V 0.38A 0.06A
@28V 0.24A 0.04A
.
Approvals Function Category  CRN
ADR Stop/Tail 49/00 33402
CTA Stop/Tail 49/00 CTA-060221

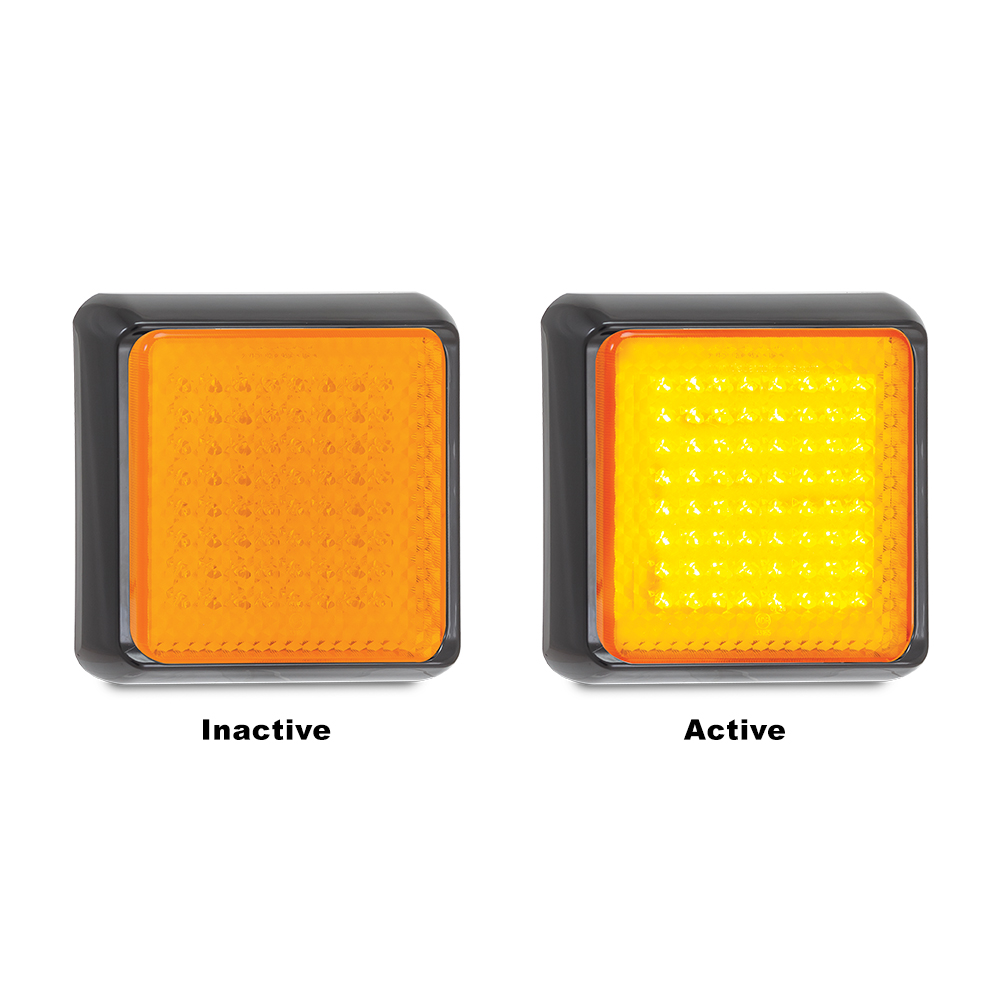

Function Rear Indicator
Part No.
Black Bkt
100A 12 Volt, Bulk
100AM 12-24V, Blister
100AMB 12-24V, boxed, lens only
.
LED Qty 49
Cable 40cm cable
.
Draw Indicator
@13.8V 0.38A
@28V 0.23A
.
Approvals Function Category  CRN
ADR Indicator 6/00 2a 33156
CTA Indicator 6/00 2a CTA-060221

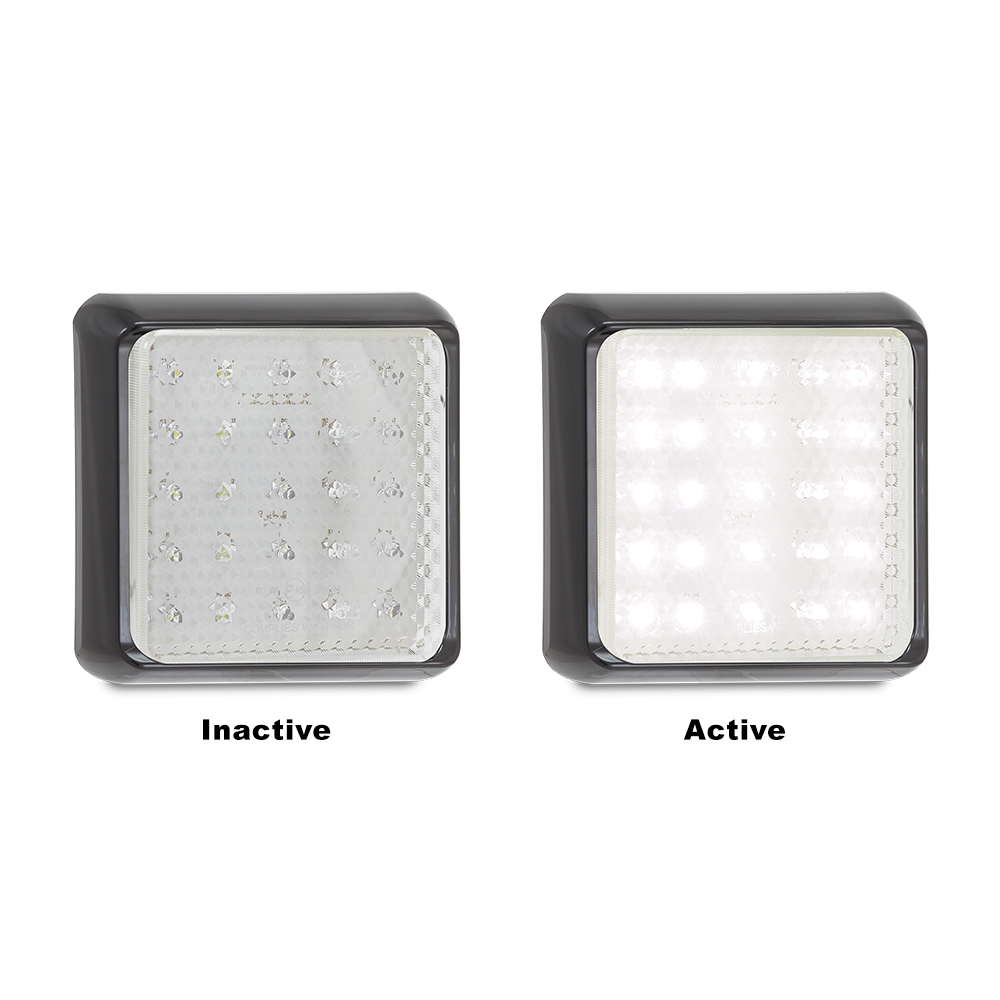

Function Reverse
Part No.
Black Bkt
100WM 12-24V, Blister
100WMB 12-24V, boxed, lens only
.
.
LED Qty 25
Cable 40cm cable
.
Draw Reverse
@13.8V 0.31A
@28V 0.17A
.
Approvals Function Category  CRN
ADR Reverse 1/00 35793
CTA Reverse 1/00 CTA-060221
