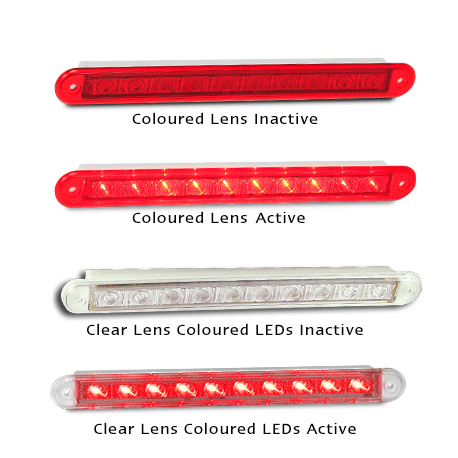

235 Series Recessed Mount
Reference:
235 Series Recessed Mount
Features / Specifications
|
Fitting InstructionsRecessed - Mount onto a flat surface (Amber/Red, horizontally or Vertically, White Horizontally only). Push lamp and grommet into cutout (cut out 203mm x 19mm) in the mounting surface, run wires through back and fix with screws (Max Torque - 8kgf/cm). Products can also be mounted using surface mounting brackets sold separately. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail | ||
 |
|||
| Part No. | |||
| 235R12 | 12V, Coloured Lens, Blister | ||
| 235R24 | 24V, Coloured Lens,Blister | ||
| 235CR12 | 12V, Clear Lens, Blister | ||
| . | |||
| LED Qty | 10 | ||
| Cable | 40cm cable | ||
| . | |||
| Draw | Stop | Tail | |
| @13.8V | 0.14A | 0.04A | |
| @28V | 0.13A | 0.05A | |
| . | |||
| Approvals | Function | Category | CRN |
| ADR | Stop/Tail | 49/00 | 37678 |
| ADR (Clear) | Stop/Tail | 49/00 | 43991 |
| CTA | Stop/Tail | 49/00 | CTA-060128 |
| Function | Rear Indicator | ||
 |
|||
| Part No. | |||
| 235A12 | 12V, Coloured Lens, Blister | ||
| 235A24 | 24V, Coloured Lens,Blister | ||
| 235CA12 | 12V, Clear Lens, Blister | ||
| . | |||
| LED Qty | 10 | ||
| Cable | 40cm cable | ||
| . | |||
| Draw | Ind | . | |
| @13.8V | 0.16A | . | |
| @28V | 0.12A | ||
| . | |||
| Approvals | Function | Category | CRN |
| ADR | Indicator | 6/00 2a | 39092 |
| ADR (Clear) | Indicator | 6/00 2a | 43989 |
| CTA | Indicator | 6/00 2a | CTA-060128 |
| Function | Reverse | ||
 |
|||
| Part No. | |||
| 235W12E | 12V, Clear Lens, Blister | ||
| 235W24E | 24V, Clear Lens,Blister | ||
| . | |||
| . | |||
| . | |||
| LED Qty | 12 | ||
| Cable | 40cm cable | ||
| . | |||
| Draw | Rev | . | |
| @13.8V | 0.26A | . | |
| 28V | 0.13A | ||
| . | |||
| Approvals | Function | Approval No. | |
| ECE | Reverse | AR-E9-00.1030 | |
| CTA | Reverse 1/00 | CTA-060124 | |
