87 Series
Reference:
87 Series
Features / Specifications
|
Fitting InstructionsMount onto a flat surface. Only one lamp must be positioned at the centre top of the licence Plate with 67mm from the lens (Pointing to the ground) to the top edge of the plate (See Diagram). Please refer to ADR 13/00 for mounting instructions. Wire Colours: Brown-Power, White-Earth
|

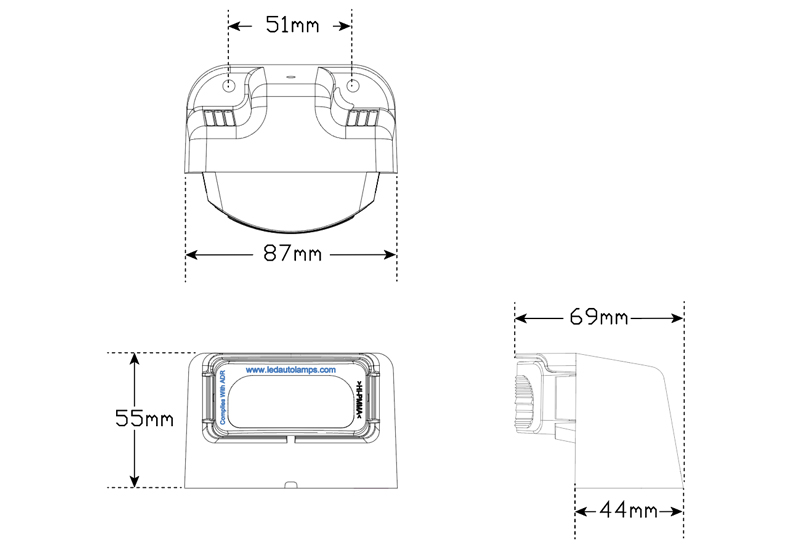

Technical Drawings
|
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Licence plate lamp |
 |
|
| Part No. | |
| Black Bkt | |
| 87BLMB | Single Bulk |
| . | |
| LED Qty | 3 |
| Cable | 24cm |
| Draw | Licence |
| @13.8V | 0.03A |
| @28V | 0.03A |
| Approvals/Category | ADR 48/00 |
| CTA | 061617 |
