- New

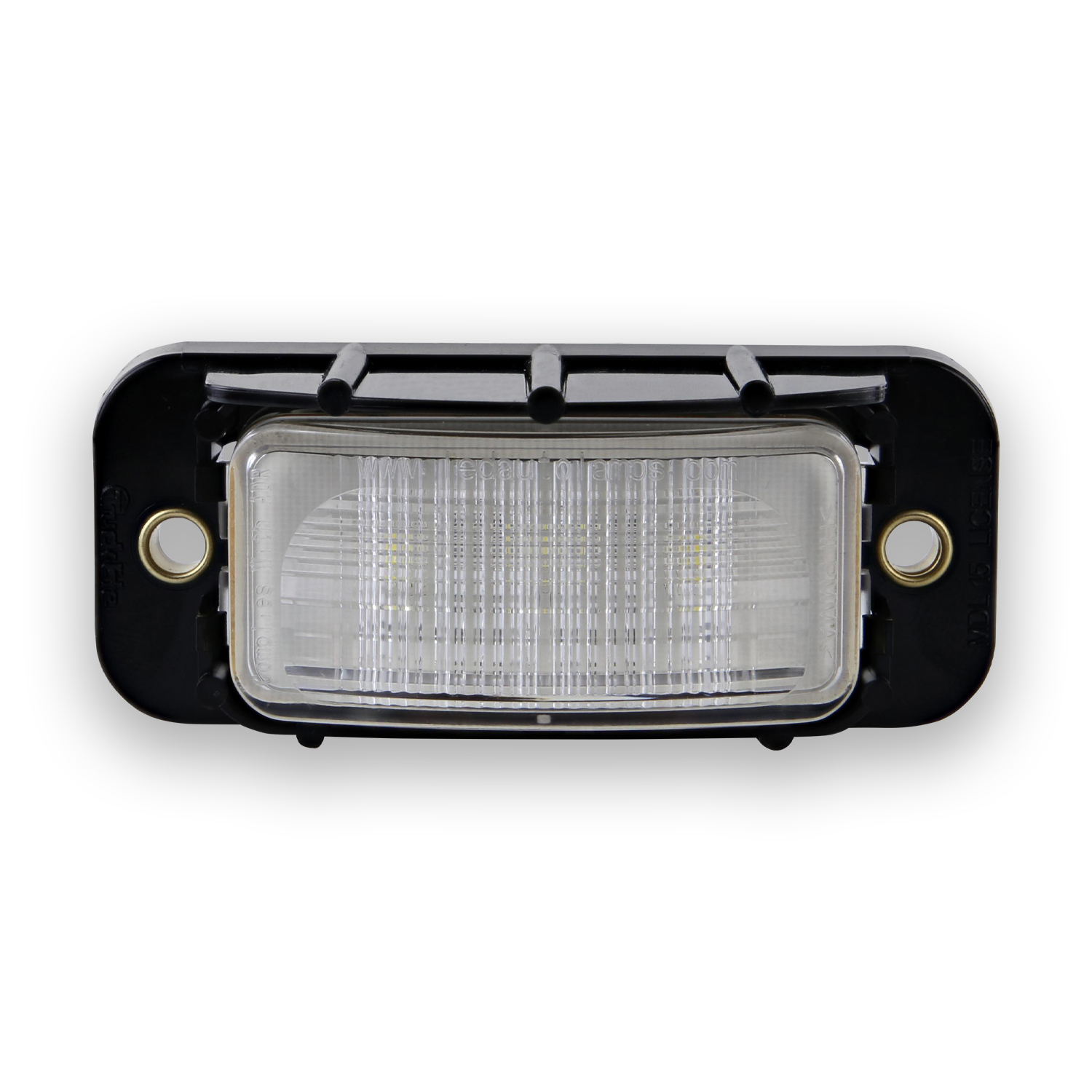

95 Series
Reference:
95 Series
Features / Specifications
|

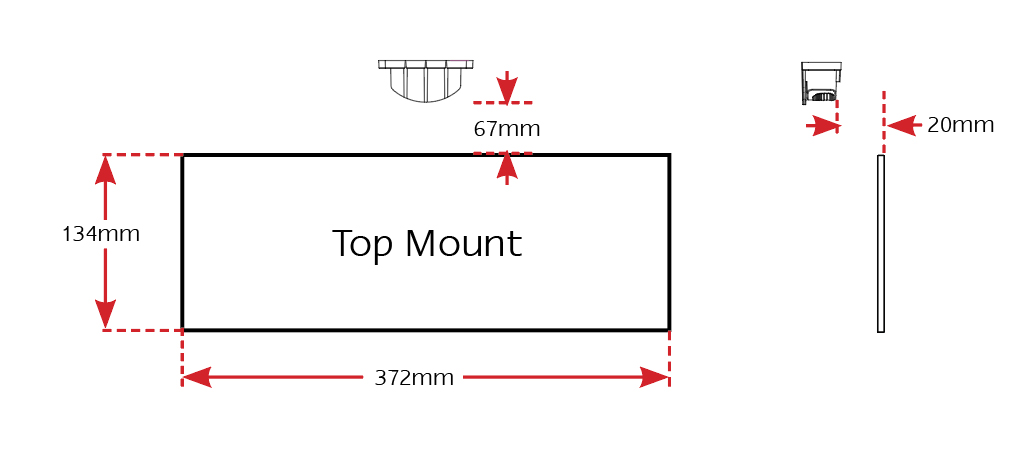

Fitting InstructionsMount onto a flat surface. Only one lamp must be positioned centre top at a right angle to the licence plate and 20mm from the plate mounting surface. Mount 67mm from the lens (Pointing to the ground) to the top edge of the plate (See Diagram). Please refer to ADR 13/00 for mounting instructions. Wire Colours: Brown-Power, White-Earth
|

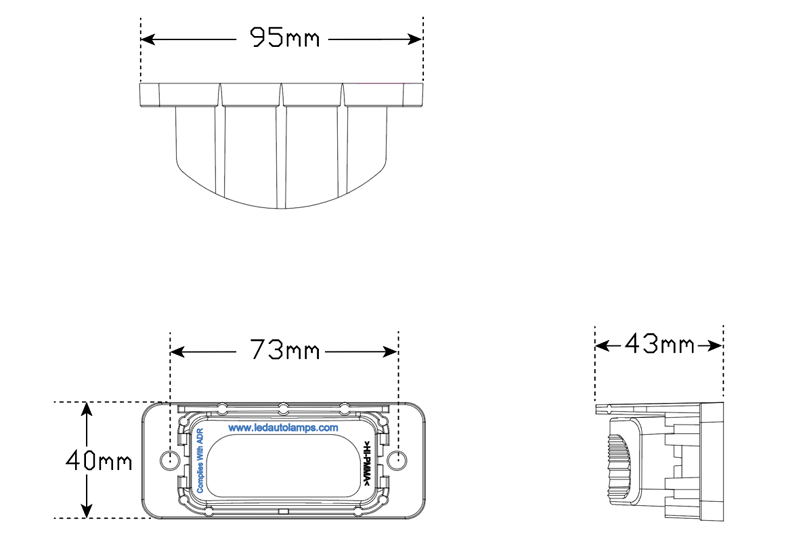

Technical Drawings
|
|
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Licence plate lamp |
 |
|
| Part No. | |
| Black Bkt | |
| 95BLMB | Single Bulk |
| . | |
| LED Qty | 3 |
| Cable | 25cm |
| Draw | Licence |
| @13.8V | 0.03 |
| @28V | 0.03 |
| Approvals/Category | ADR 48/00 |
| CTA | 061605 |
