Maxilamp Singles
Reference:
Maxilamp Single
Features / Specifications
|
Fitting InstructionsMount onto a flat surface with bolts or 3M tape, depending on product choice. The Bolts have been tested to a torque-breaking strain of 140±10 Kg-cm. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Ind/Reflector | ||
 |
|||
| Part No. | |||

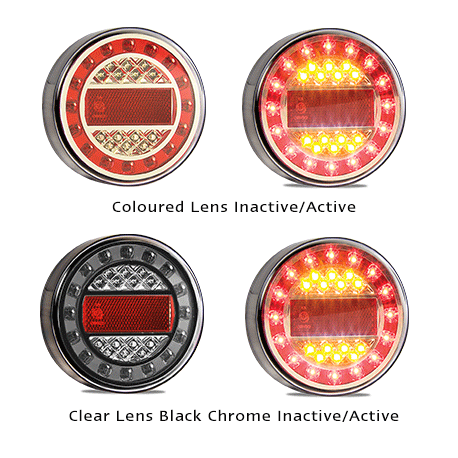

| Maxilamp1XRE | Coloured Lens, Single Blister | ||
| MaxilampC1XRE | Clear Lens, Single Blister | ||
| . | |||
| . | |||
| . | |||
| LED Qty | 30 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.34A | 0.07A | 0.37A |
| @28V | 0.17A | 0.06A | 0.16A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.6445 | |
| ECE | Indicator | 2a-E9-01.6445 | |
| ECE | Reflector | 1a-E9-01.1472 | |
| CTA | 6/00, 47/00, 49/00 | CTA-060074 | |
| Function | Stop/Tail/Rev/Reflector | |||
 |
||||
| Part No. | ||||
| MaxilampC1RXRE | Clear Lens, Single Blister | |||
| . | ||||
| . | ||||
| . | ||||
| . | ||||
| LED Qty | 30 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Rev | |
| @13.8V | 0.34A | 0.07A | TBA | |
| @28V | 0.17A | 0.06A | TBA | |
| Approvals | Function | Approval No. | ||
| CTA | 49/00, 47/00, 1/00 | CTA-060042 | ||
| . | ||||
| . | ||||
| . | ||||
| Function | Stop/Tail/Ind/Reflector | ||
 |
|||
| Part No. | |||

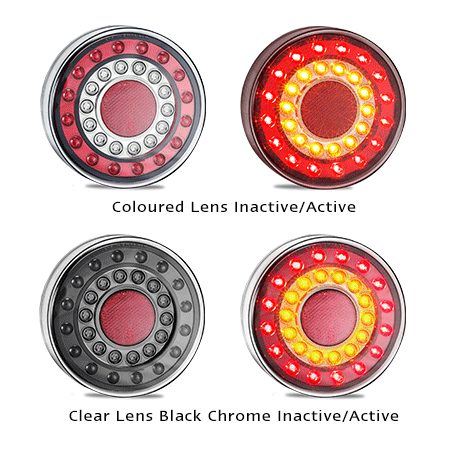

| Maxilamp1XC | Coloured Lens, Single Blister | ||
| MaxilampC1XCE | Clear Lens, Single Blister | ||
| MaxilampC1XCE3M | Clear Lens, 3M, Single Bulk | ||
| . | |||
| . | |||
| LED Qty | 30 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.34A | 0.07A | 0.37A |
| @28V | 0.17A | 0.06A | 0.16A |
| Approvals | Function | Approval No. | |
| ECE | Stop/Tail | R1-S1-E9-02.6445 | |
| ECE | Indicator | 2a-E9-01.6445 | |
| ECE | Reflector | 1a-E9-02.6445 | |
| CTA | 6/00, 47/00, 49/00 | CTA-060073 | |
| Function | Stop/Tail/Rev/Reflector | ||
 |
|||
| Part No. | |||
| MaxilampC1RXCE | Clear Lens, Single Blister | ||
| . | |||
| . | |||
| . | |||
| . | |||
| LED Qty | 30 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Rev |
| @13.8V | 0.34A | 0.07A | TBA |
| @28V | 0.17A | 0.06A | TBA |
| Approvals | Function | Approval No. | |
| CTA | Stop/Tail/Rev/Ref | CTA-060037 | |
| . | |||
| . | |||
| . | |||
| Function | Reverse/Reflector | ||
 |
|||
| Part No. | |||
| Maxilamp1XCWE | Coloured Lens, Single Blister | ||
| . | |||
| . | |||
| . | |||
| . | |||
| LED Qty | 30 | ||
| Cable | 40cm | ||
| Draw | Reverse | ||
| @13.8V | 0.39A | ||
| @28V | 0.23A | ||
| Approvals | Function | Approval No. | |
| ECE | Reverse | AR-E9-00.1152 | |
| ECE | Reflector | 1a-E9-01.6445 | |
| CTA | 1/00, 47/00 | CTA-060075 | |
| . | |||
