• Rear Combination Lamps

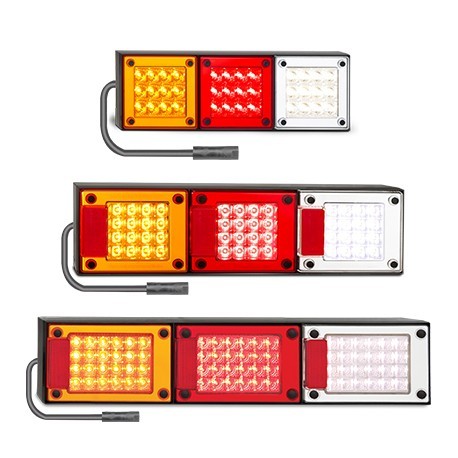

Rear Combination Lamps

Reference: Rear Combination Lamps

Features / Specifications

  • Heavy Duty Waterproof Cable, Plugs and Connectors
  • Cable System Compliant with Dangerous Goods (AS2809)
  • RoHS Compliant Cables, Plugs and Lights
  • Plug Covers
  • 5 Year Warranty, Livestock Transport 1 Year Warranty

Technical Drawings

Small Jumbo
Medium Jumbo
Maxilamp 3 Series
Download Data Sheet

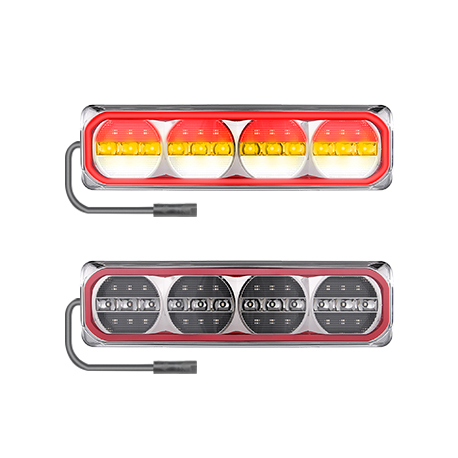

385 Series

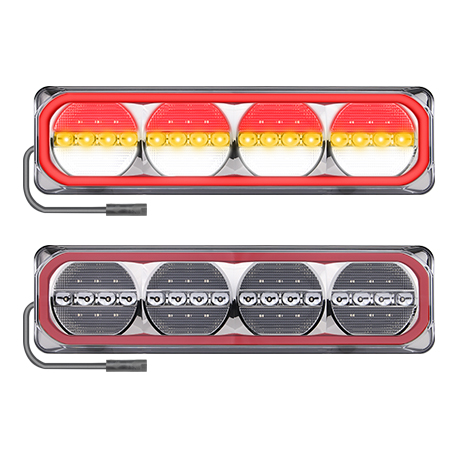

520 Series

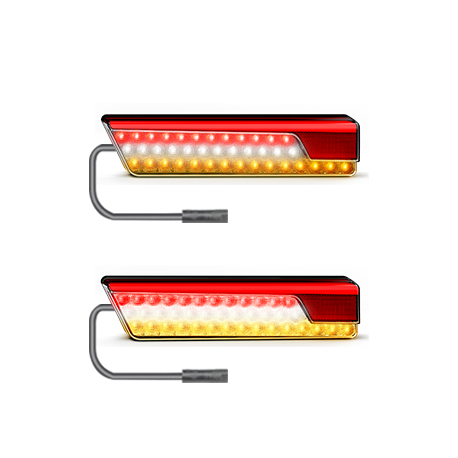

355 Series

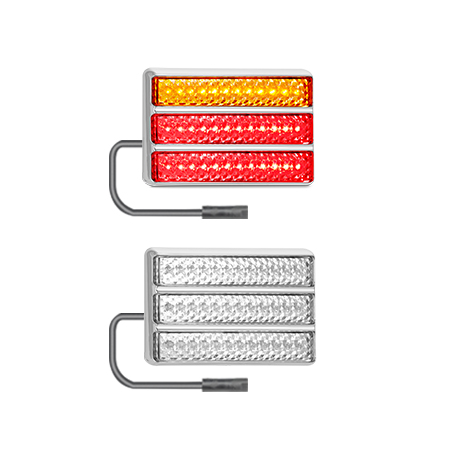

200CC Series

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

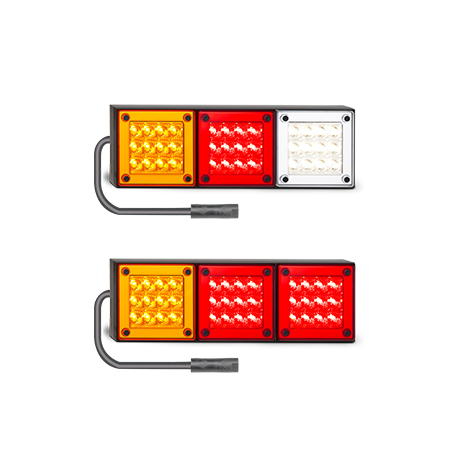

Function Small Jumbo
Stop/Tail/Indicator/Reverse
Part No.
280ARRMLCSB Stop/Tail/Indicator
Left Side - Bulk
280ARRMRCSB Stop/Tail/Indicator
Right Side - Bulk
.
280ARWMLCSB Stop/Tail/Indicator/Reverse
Left Side - Bulk
280ARWMRCSB Stop/Tail/Indicator/Reverse
Right Side - Bulk
.
Dimensions 282mm x 95mm x 28mm
Voltage 12-24 Volt
LED Qty 36
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.30A 0.04A 0.14A 0.17A
@28V 0.22A 0.06A 0.11A 0.13A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.11544
ECE Indicator 2a-E9-01.11545
ECE Reverse AR-E9-00.1207
.
Function Medium Jumbo
Stop/Tail/Indicator/Reverse/Reflector
Part No.
460ARRMLCSB Stop/Tail/Indicator/Reflector
Left Side - Bulk
460ARRMRCSB Stop/Tail/Indicator/Reflector
Right Side - Bulk
.
460ARWMLCSB Stop/Tail/Indicator/Reverse/Reflector
Left Side - Bulk
460ARWMRCSB Stop/Tail/Indicator/Reverse/Reflector
Right Side - Bulk
.
Dimensions 460mm x 130mm x 33mm
Voltage 12-24 Volt
LED Qty 48
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.30A 0.02A 0.32A 0.19A
@28V 0.17A 0.04A 0.18A 0.012A
Approvals Function Approval No.
ECE Stop/Tail R1-S1-E9-02.11293
ECE Indicator 2a-E9-01.6205
ECE Reverse AR-E9-00.1208
ECE Reflector IA-E9-02.1472

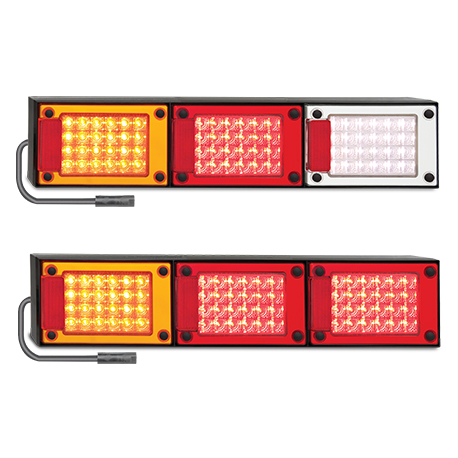

Function Large Jumbo
Stop/Tail/Indicator/Reverse/Reflector
Part No.
J3BARRMLCSB Stop/Tail/Indicator/Reflector
Left Side - Bulk
J3BARRMRCSB Stop/Tail/Indicator/Reflector
Right Side - Bulk
.
J3BARWMLCSB Stop/Tail/Indicator/Reverse/Reflector
Left Side - Bulk
J3BARWMRCSB Stop/Tail/Indicator/Reverse/Reflector
Right Side - Bulk
.
Dimensions 595mm x 130mm x 45mm
Voltage 12-24 Volt
LED Qty 72
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.47A 0.04A 0.42A 0.18A
@28V 0.27A 0.03A 0.28A 0.11A
Approvals Function Category CRN
ADR Stop/Tail 49/00 42965
ADR Indicator 6/00 2a 42964
ADR Reverse 1/00 42967
ADR Reflector 47/00 42966
Function 385 Series
Stop/Tail/Indicator/Reverse
Part No.
385ARWMLCSB Stop/Tail/Indicator/Reverse
Left Side - Bulk
385ARWMRCSB Stop/Tail/Indicator/Reverse
Right Side - Bulk
.
Dimensions 387mm x 105mm x 30.5mm
Voltage 12-24 Volt
LED Qty 112
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.23A 0.57A 0.24A 0.37A
@28V 0.12A 0.30A 0.14A 0.19A
Approvals Function Approval No.
ECE Stop/Tail E9*7R02/27*23586*00
ECE Indicator E9*6R01/29*23586*00
ECE Reverse E9*23R00/22*23586*00
.
Function 520 Series
Stop/Tail/Indicator/Reverse
Part No.
520ARWMLCSB Stop/Tail/Indicator/Reverse
Left Side - Bulk
520ARWMRCSB Stop/Tail/Indicator/Reverse
Right Side - Bulk
.
Dimensions 520mm x 141mm x 28.5mm
Voltage 12-24 Volt
LED Qty 136
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.22A 0.64A 0.33A 0.41A
@28V 0.12A 0.34A 0.18A 0.21A
Approvals Function Approval No.
ECE Stop/Tail E9*7R02/27*23588*00
ECE Indicator E9*6R01/29*23588*00
ECE Reverse E9*23R00/22*23588*00
.
Function 355 Series
Stop/Tail/Indicator/Reverse/Reflector
Part No.
355BARWMLCSB Stop/Tail/Indicator/Reverse/Reflector
Left Side - Black Chrome - Bulk
355BARWMRCSB Stop/Tail/Indicator/Reflector
Right Side - Black Chrome - Bulk
.
355ARWMLCSB Stop/Tail/Indicator/Reverse/Reflector
Left Side - Chrome - Bulk
355ARWMRCSB Stop/Tail/Indicator/Reverse/Reflector
Right Side - Chrome - Bulk
.
Dimensions 355mm x 86mm x 35mm
Voltage 12-24 Volt
LED Qty 63
Cable 20cm with Plug
Draw Stop Tail Ind Rev
@13.8V 0.13A 0.45A 0.35A 0.19A
@28V 0.07A 0.23A 0.18A 0.10A
Approvals Function Approval No.
ECE Stop/Tail E9*7R02/27*23749*00
ECE Indicator E9*6R01/29*23749*00
ECE Reverse E9*23R00/22*23749*00
ECE Reflector E9*3R02/17*23749*00
Function 200 Series
Stop/Tail/Indicator
Part No.
200CCARRMLCSB Stop/Tail/Indicator
Left Side - Bulk
200CCARRMRCSB Stop/Tail/Indicator
Right Side - Bulk
.
.
.
.
.
.
Dimensions 295mm x 120mm x 55mm
Voltage 12-24 Volt
LED Qty 36
Cable 20cm with Plug
Draw Stop Tail Ind
@13.8V 0.32A 0.04A 0.34A
@28V 0.18A 0.04A 0.19A
Approvals Function Category CRN
ADR Stop/Tail 49/00 35941
ADR Indicator 6/00 2a 35795
. . .
. . .
Rear Combination Lamps
