Reference: 35 Series

Features / Specifications

  • Premium Original Design
  • Low Profile
  • Clip in Replaceable Lens
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 58mm x 35mm x 21mm

Fitting Instructions

Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

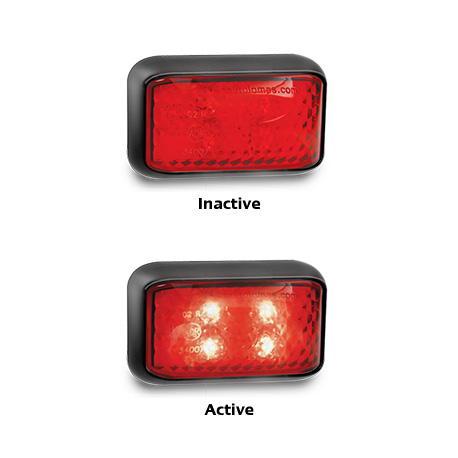

Function Rear End Outline Marker
Part No.
35RM Multivolt 12-24V, Blister Single
35RMB Multivolt 12-24V, Bulk poly bag
.
.
LED Qty 4
Cable 40cm
Draw @13.8V @28V
012.A 0.07A
Approvals  Function Category CRN
ADR Rear End 49/00 34007
CTA Rear End 49/00 CTA-060077

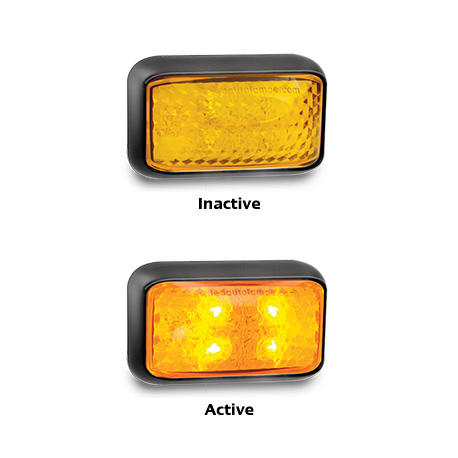

Function Side Direction Indicator
Part No.
35AM Multivolt 12-24V, Blister Single
35AMB Multivolt 12-24V, Bulk poly bag
.
.
LED Qty 4
Cable 40cm
Draw @13.8V @28V
0.10A 0.07A
Approvals  Function Category CRN
ADR Side Direction 6/00/5 33894
CTA Side Direction 6/00 CTA-060078

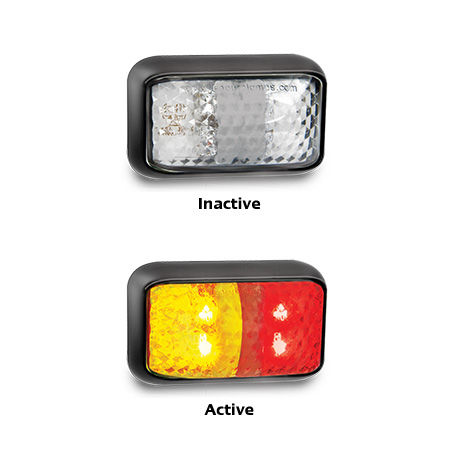

Function Side Marker
Part No.
35ARM Multivolt 12-24V, Blister Single
35ARMB Multivolt 12-24V, Bulk poly bag
35ARM2 Multivolt 12-24V, 2m Cable, Bulk poly bag
.
LED Qty 4
Cable 40cm or 2 metre cable
Draw @13.8V @28V
0.10A 0.07A
Approvals  Function Category CRN
ADR Side Marker 45/01  34099
CTA Side Marker 45/01 CTA-034099
Function Front End Outline Marker
Part No.
35WM Multivolt 12-24V, Blister Single
35WM2 Multivolt 12-24V, 2m Cable, Bulk poly bag
.
.
LED Qty 4
Cable 40cm or 2 metre cable
Draw @13.8V @28V
0.05A 0.04A
Approvals  Function Category CRN
ADR Front End 49/00 34008
CTA Front End 49/00 CTA-060076
