86 Black Series

Reference: 86 Black Series

Features / Specifications

  • Popular truck style
  • Low profile
  • Clear lens-coloured LEDs
  • Black Steel Bezel
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 86mm x 31mm x 10mm

Fitting Instructions

Surface mount horizontally. Remove the bezel and fit the lamp with screws, then clip the bezel back into place. Please refer to ADR 13/00 for mounting instructions.


Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Rear End Outline Marker
Part No.
86BRM 12-24V, Blister Pack
86BRMB 12-24V, Poly Bag
LED Qty 3
Cable 15cm
Draw @13.8V @28V
0.05A 0.06A
Approvals  Function Category CRN
ADR Rear End 49/00 46821
CTA Rear End 49/00 CTA-046821

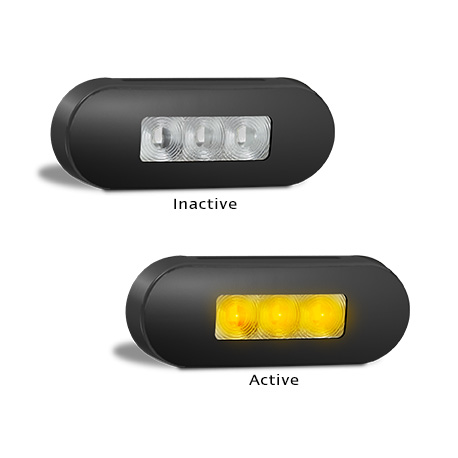

Function Side Marker
Part No.
86BAM 12-24V, Blister Pack
86BAMB 12-24V, Poly Bag
LED Qty 3
Cable 15cm
Draw @13.8V @28V
0.05A 0.06A
Approvals  Function Category CRN
ADR Marker 74/00, 45/01 46827
CTA Marker 74/00, 45/01 061261
Function Side Marker
Part No.
86BARM 12-24V, Blister Pack
86BARMB 12-24V, Poly Bag
LED Qty 2
Cable 15cm
Draw @13.8V @28V
0.05A 0.06A
Approvals  Function Category CRN
ADR Marker 45/01 48024
CTA Marker 45/01 CTA-048024

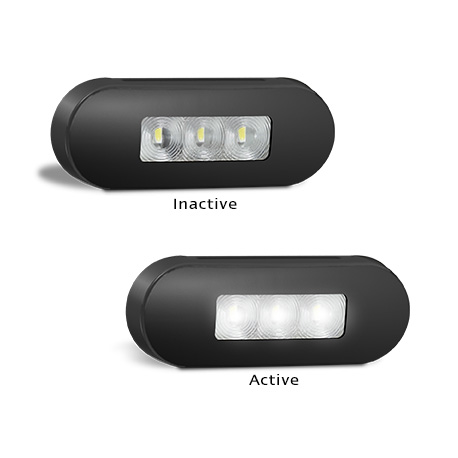

Function Front End Outline Marker
Part No.
86BWM 12-24V, Blister Pack
86BWMB 12-24V, Poly Bag
LED Qty 3
Cable 15cm
Draw @13.8V @28V
0.01A 0.01A
Approvals  Function Category CRN
ADR Front End 49/00 46897
CTA Front End 49/00 CTA-046897
