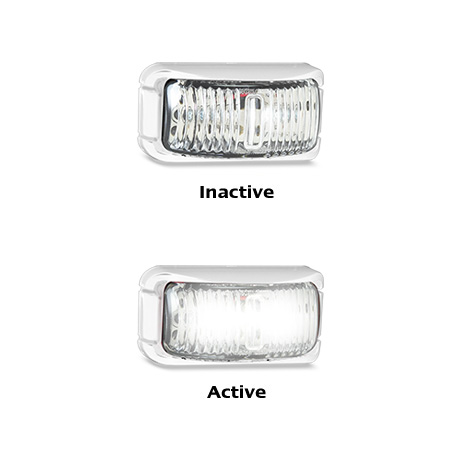

42 Series White
Reference:
42 Series White/Chrome
Features / Specifications
|
Fitting InstructionsMount bracket horizontally onto a flat surface run wires through the back and clip the lens into place. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Rear End Outline Marker | ||
 |
|||
| Part No. | |||
| 42WRMB | 12-24V, Box of 10 | ||
| . | |||
| LED Qty | 2 | ||
| Cable | 16cm cable | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Rear End | 49/00 | 42839 |
| CTA | Rear End | 49/00 | CTA-042839 |
| Function | Side Marker | ||
 |
|||
| Part No. | |||
| 42WARMB | 12-24V, Box of 10 | ||
| . | |||
| LED Qty | 2 | ||
| Cable | 16cm cable | ||
| Draw | @13.8V | @28V | |
| 0.05A | 0.06A | ||
| Approvals | Function | Category | CRN |
| ADR | Side Marker | 45/01 | 42837 |
| CTA | Side Marker | 45/01 | CTA-042837 |
| Function | Front End Outline Marker | ||
 |
|||
| Part No. | |||
| 42WWMB | 12-24V, Box of 10 | ||
| . | |||
| LED Qty | 2 | ||
| Cable | 16cm cable | ||
| Draw | @13.8V | @28V | |
| 0.03A | 0.03A | ||
| Approvals | Function | Category | CRN |
| ADR | Front End | 49/00 | 42840 |
| CTA | Front End | 49/00 | CTA-042840 |
