58 Series Chrome

Reference: 58 Series

Features / Specifications

  • Budget New Lens Design
  • Low Profile
  • Clip-in Replaceable Lens
  • ADR Approved
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 5 Year Warranty
  • 58mm x 35mm x 21mm

Fitting Instructions

Surface mount bracket, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

SHOP NOW

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Rear End Outline Marker
Part No.
58CRMB 12-24V, Box of 10
.
.
LED Qty 2
Cable 3-metre cable
Draw @13.8V @28V
012.A 0.04A
Approvals  Function Category CRN
ADR Rear End 49/00 36840
CTA Rear End 49/00 CTA-060029

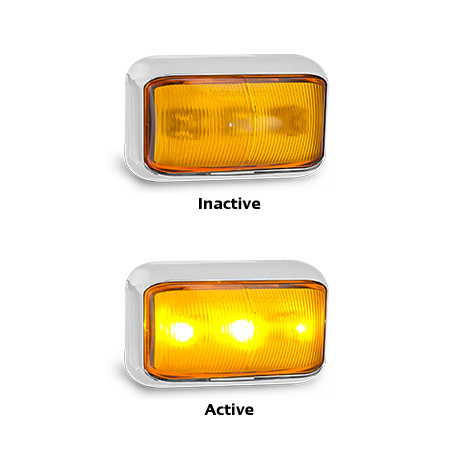

Function Side Direction Indicator
Part No.
58CAM 12-24V, Blister Single
58CAMB 12-24V, Box of 10
58CAM3 12-24V, 3m Cable, Single Bulk
LED Qty 3
Cable 40cm or 3-metre cable
Draw @13.8V @28V
0.10A 0.04A
Approvals  Function Category CRN
ADR Side Direction 6/00/5 38277
CTA Side Direction 6/00/5 CTA-060030

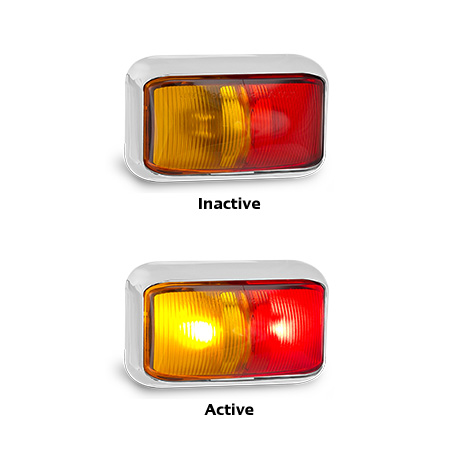

Function Side Marker
Part No.
58CARM 12-24V, Blister Single
58CARMB 12-24V, Box of 10
58CARM3 12-24V, 3m Cable, Single Bulk
LED Qty 2
Cable 40cm or 3-metre cable
Draw @13.8V @28V
0.10A 0.04A
Approvals  Function Category CRN
ADR Side Marker 45/01  36841
.

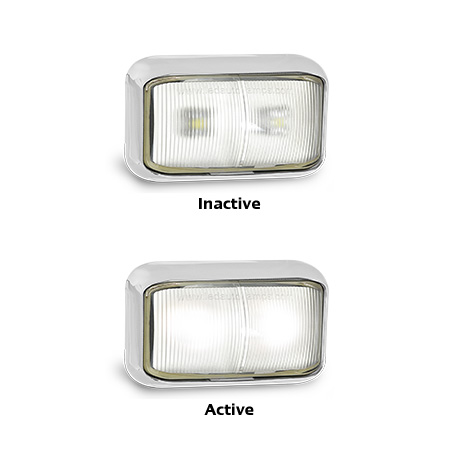

Function Front End Outline Marker
Part No.
58CWM3 12-24V, 3m Cable, Single Bulk
.
.
LED Qty 2
Cable 43-metre cable
Draw @13.8V @28V
0.05A 0.03A
Approvals  Function Category CRN
ADR Front End 49/00 36842
CTA Front End 49/00 CTA-060028
