DL226 Series

Reference: DL226 Series

Features / Specifications

  • 610m Beam Distance
  • High Powered 10 Watt LEDs
  • Cool White Light 6000K
  • Low Profile, Light-Weight Design
  • Polycarbonate Lens and Housing
  • Stainless Steel Bracket with Cover
  • 226mm Round x 114mm
  • 3 Year Warranty

Fitting Instructions

Fix to the mounting surface using stainless steel bolts and adjustable stainless steel bracket supplied.



Lighting Diagram

DL245 Lighting Diagram.jpg
Download Data Sheet

SHOP NOW

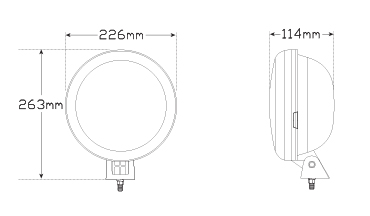

Technical Drawings

DL226_New Tech.jpg

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

Function ECE Approved Driving Lamp

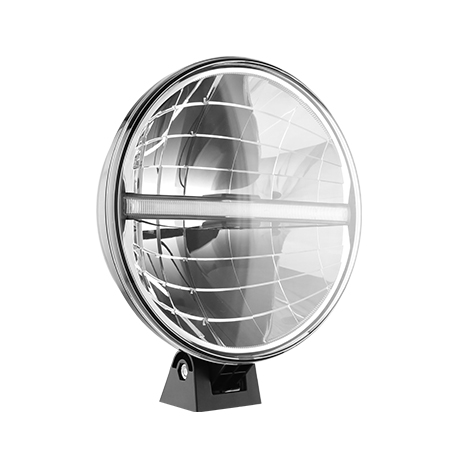

DL226_Perspective Web.jpg
Part No.
DL226 Twin Blister
Colour Temp 6000K Cool White
LED Qty 2x 10W + 18 Front Position
.
Cable 300mm
Draw Driving Position
@13.8V 1.25A 0.15A
@28V 0.6A 0.15A
Approvals Function Approval No.
ECE Driving Beam E6*112R01/08*5203*00
ECE Front Position E6*7R02/27*5203*00
ECE EMC R10 E6*10R05/01*1133*00
CTA Driving Beam, Front Position CTA-060275
