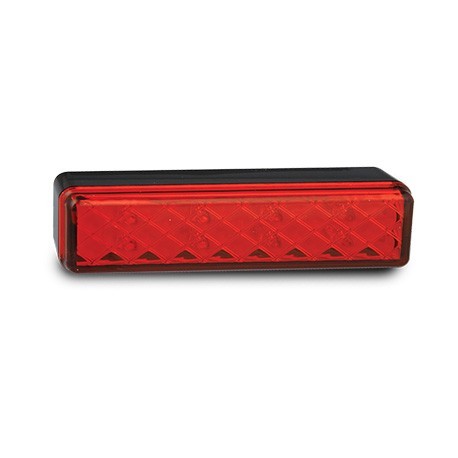

135 Series Surface Mount
Reference:
135 Series Surface Mount
Features / Specifications
|
Fitting InstructionsSurface mount horizontally surface mount with screws or plugs provided, run wires through back & clip lens into place. Recess mount horizontally with grommet (grommet sold separately), run wires through back & push lens into place, (cut out for grommet 133mm x 36mm) Refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Centre High Mount Stop Lamp | ||
 |
|||
| Part No. | |||

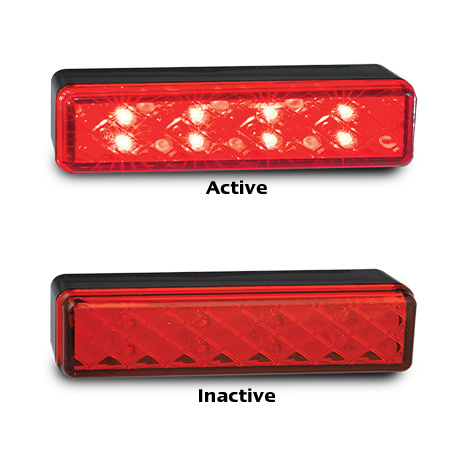

| 135RMES3 | 12-24V, Bulk | ||
| . | |||
| LED Qty | 8 | ||
| Cable | 40cm | ||
| . | |||
| Draw | Stop | ||
| @13.8V | 0.07A | ||
| @28V | 0.05A | ||
| . | |||
| Approvals | Function | Approval No. | |
| ECE | Stop | E9*7R02/27*22214*00 | |
| CTA | Stop | CTA-060226 | |
