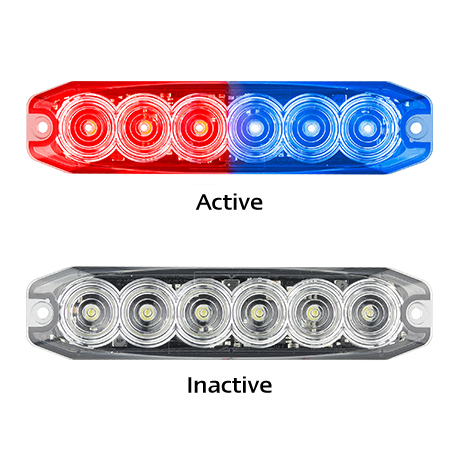

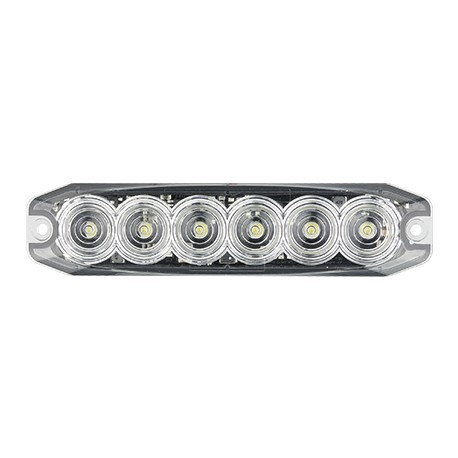

120035 Series Red/Blue
Reference:
120035 Series Red/Blue
Features / Specifications
|
Fitting InstructionsRemove backing from 3M tape on back of lens, run wires through hole in mounting surface. Apply firm hand pressure to ensure lamp adhesion. Use provided screws to secure lamp further. Refer to ADR 13/00 for mounting instructions. For detailed wiring instructions, Download the Data Sheet opposite. |
| Download Data Sheet SHOP NOW |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Red/Blue Emergency Lamp | |
 |
||
| Part No. | ||
| 120035RBM | Blister | |
| . | ||
| LED Qty | 6 x 3 Watt | |
| Flash Rate | Multiple with 14 Flash Patterns | |
| Cable | 25cm | |
| Draw | Constant | Strobe |
| @13.8V | 0.29A | 0.72-0.005A |
| @28V | 0.153A | 0.36-0.008A |
