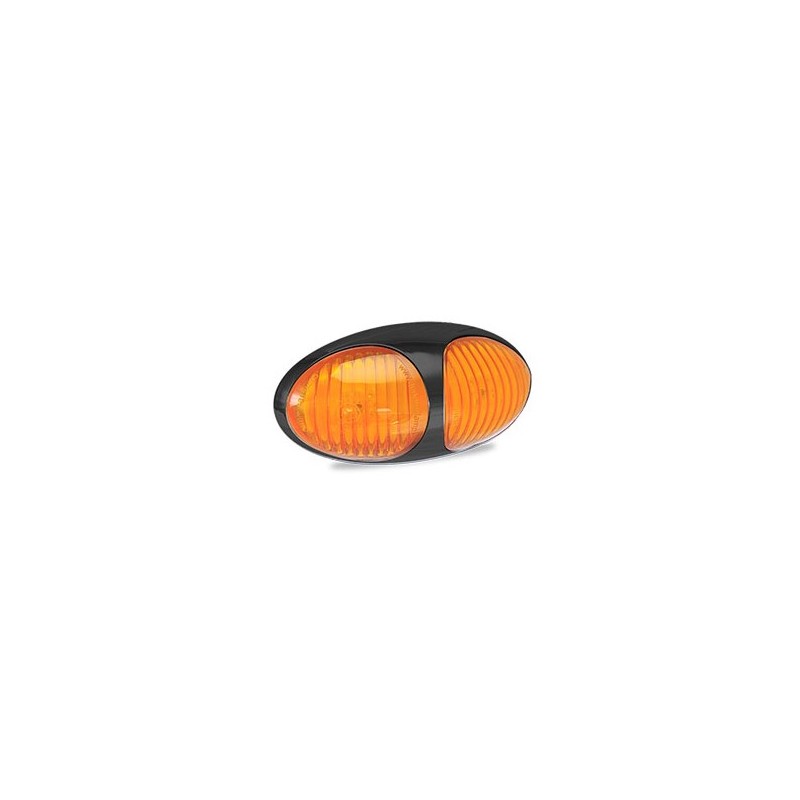

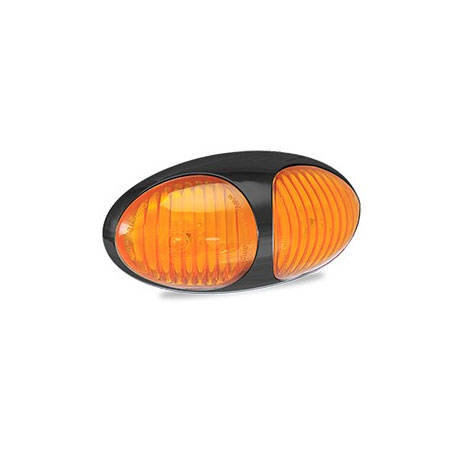

37 Series
Reference:
37 Series
Features / Specifications
|
Fitting InstructionsDrill two 6mm holes for serrated plugs and one 8mm hole or larger for the cable. Remove the 3M protective film from the back of the lamp and simply push into place. Please refer to ADR 13/00 for mounting instructions.
|
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Side Direction Indicator | ||
 |
|||
| Part No. | |||
| Black Bkt | |||
| 37AM2P | Multivolt 12-24V, Blister Single | ||
| 37AMB2P | Multivolt 12-24V, Bulk poly bag | ||
| 37AMB3 | Multivolt 12-24V, 3m Cable, Bulk poly bag | ||
| Chrome Bkt | |||
| 37CAM2P | Multivolt 12-24V, Blister Single | ||
| 37CAMB2P | Multivolt 12-24V, Bulk boxed | ||
| Clear Chrome Bkt | |||
| 37CCRM2P | Multivolt 12-24V, Blister Single | ||
| . | |||
| LED Qty | 2 | ||
| Cable | 10cm with specially designed plugs or 3 metre cable | ||
| Draw | @13.8V | @28V | |
| 0.04A | 0.04A | ||
| Approvals | Function | Approval No. | |
| ECE | Marker | SM1-E9-00.1017 | |
