83 Series
Reference:
83 Series
Features / Specifications
|
Fitting InstructionsFit to flat surface with three screws supplied ensuring 4 inch “O” ring is positioned under base. Run wires from back of lamp.
|
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|

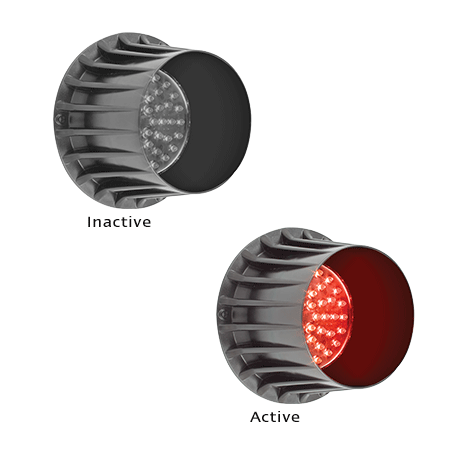

| Function | Red Traffic/Arrow Board Lamp | |
 |
||
| Part No. | ||
| 83R | Single bulk box | |
| . | ||
| LED Qty | 48 x 30˚ round | |
| Cable | 10cm | |
| Draw | Red | |
| @13.8V | 0.42A | |
| Function | Amber Traffic/Arrow Board Lamp | |
 |
||
| Part No. | ||
| 83A | Single bulk box | |
| . | ||
| LED Qty | 48 x 30˚ round | |
| Cable | 10cm | |
| Draw | Amber | |
| @13.8V | 0.42A | |

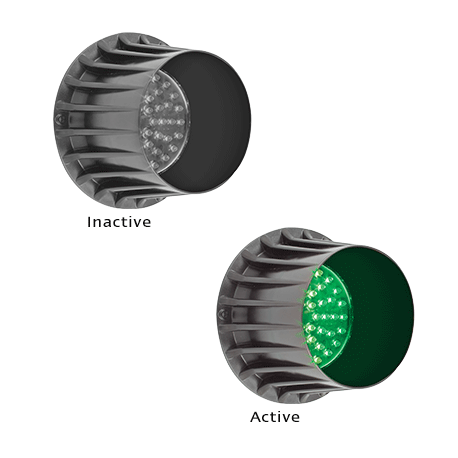

| Function | Green Traffic/Arrow Board Lamp | |
 |
||
| Part No. | ||
| 83G | Single bulk box | |
| . | ||
| LED Qty | 48 x 30˚ round | |
| Cable | 10cm | |
| Draw | Green | |
| @13.8V | 0.66A | |
