Mini Beacons

Reference: Mini Beacons

Features / Specifications

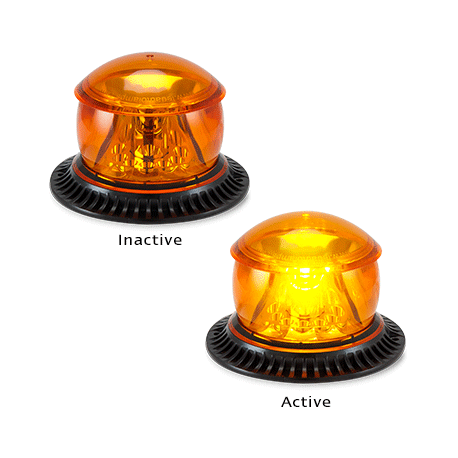

  • Amber Mini Strobe Beacon
  • Amber Lens
  • SAEJ845 Compliant
  • IP67 Rated
  • Voltage Range 10-48 Volt
  • 96mm Round x 64mm
  • 3 Year Warranty

Fitting Instructions

Run wires through hole in fixing surface or from the side of the base. Attach with screws provided; ensure foam gasket is between lamp and fixing surface.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function SAE Amber Beacon
Part No.
MB12AM Amber Lens, Single blister
Size 96mm round x 64mm
LED Qty 12 x 1 watt
Cable 40cm
Flash Rate 45 FPM
Draw
@13.8V 1.00A
@28V 1.00A
Approvals Category
SAE J845 Class 1
Function SAE Amber Beacon
Part No.
MB12AMC Clear Lens, Single blister
Size 96mm round x 64mm
LED Qty 12 x 1 watt
Cable 40cm
Flash Rate 45 FPM
Draw
@13.8V 1.00A
@28V 1.00A
Approvals Category
SAE J845 Class 1
