• 90 Series

90 Series

Reference: 90 Series

Features / Specifications

  • Various Flash Pattern 180˚
  • 12 Strobe Function Synchronised
  • Available in 5 Colours
  • IP67 Rated
  • Voltage Range 12-24 Volt
  • 112mm x 37mm x 23mm

Fitting Instructions

Fix to flat surface at two fixing points.

Wire Colour & Flash Pattern Selection

  • Red - Power
  • Black - Earth
  • White - Low Power [Connect white wire to black wire for low power, strobe functions only]
  • Yellow - Synchronising (Optional) [1 sec next pattern] [1-3 sec previous] [3-5 sec steady] [5 sec + off]. Connect yellow wires of all lamps together for synchronisation.


Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

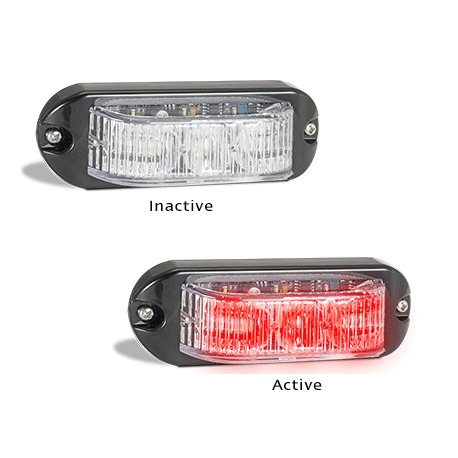

Function Red Emergency Lamp
Part No.
90RM Blister
.
LED Qty 3 x 1 Watt
Flash Rate Multiple
Cable 18cm
Draw Strobe
@13.8V 0.01-0.15A
@28V 0.03-0.06A

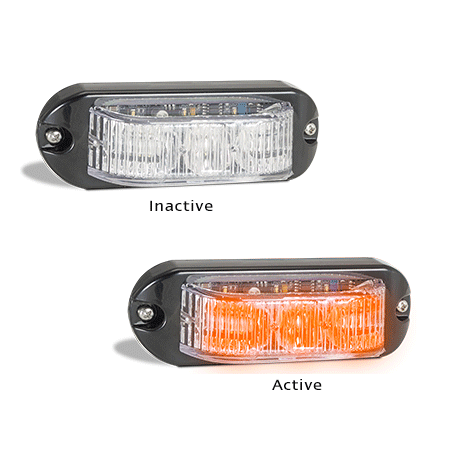

Function Amber Emergency Lamp
Part No.
90AM Blister
.
LED Qty 3 x 1 Watt
Flash Rate Multiple
Cable 18cm
Draw Strobe
@13.8V 0.01-0.15A
@28V 0.03-0.06A

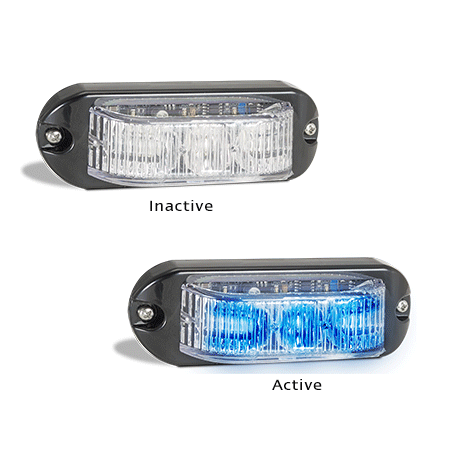

Function Blue Emergency Lamp
Part No.
90BM Blister
.
LED Qty 3 x 1 Watt
Flash Rate Multiple
Cable 18cm
Draw Strobe
@13.8V 0.08-0.16A
@28V 0.02-0.12A
Function Green Emergency Lamp
Part No.
90GM Blister
.
LED Qty 3 x 1 Watt
Flash Rate Multiple
Cable 18cm
Draw Strobe
@13.8V 0.01-0.42A
@28V 0.01-0.23A

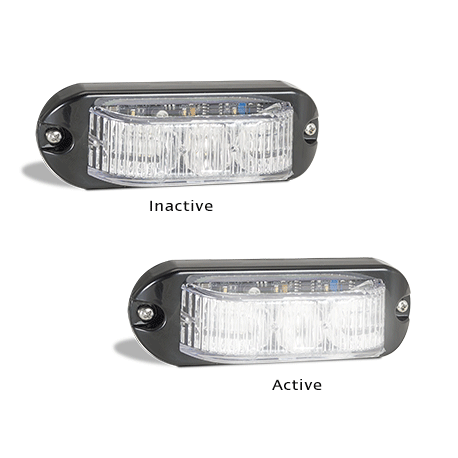

Function White Emergency Lamp
Part No.
90WM Blister
.
LED Qty 3 x 1 Watt
Flash Rate Multiple
Cable 18cm
Draw Strobe
@13.8V 0.01-0.20A
@28V 0.01-0.19A
