• J3 Series

J3 Series

Reference: J3 Series

Features / Specifications

  • Popular Jumbo Design
  • ADR Approved
  • IP67 Rated
  • 12-24 Volt
  • 5 Year Warranty
  • 595mm x 130mm x 45mm

Fitting Instructions

Horizontally mount onto flat surface using bolts in back of lamp, run wire through hole in fixing surface. Please refer to ADR 13/00 for mounting instructions.


Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]

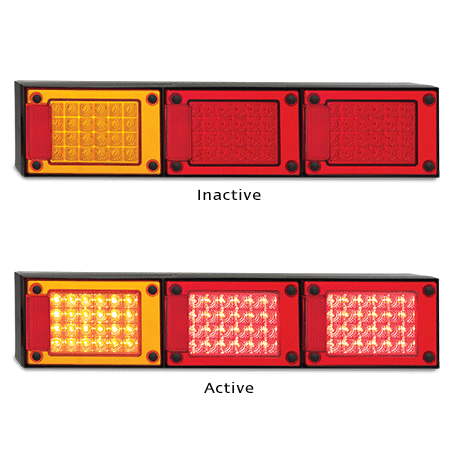

Function Stop/Tail/Indicator/Reflector
Part No.
J3BARRM 12-24 Volt, Blister
J3BARRMB 12-24 Volt, Box
.
LED Qty 72
Cable 1.2m
Draw Stop Tail Ind
@13.8V  0.47A  0.04A  0.42A
@28V 0.27A 0.03A 0.28A
Approvals Function Category CRN
ADR Stop/Tail 49/00 42965
ADR Indicator 6/00 2a 42964
ADR Reflector 47/00 42966
CTA Stop/Tail/Ind/Ref 49/00, 6/00 2a, 47/00 CTA-042964
.

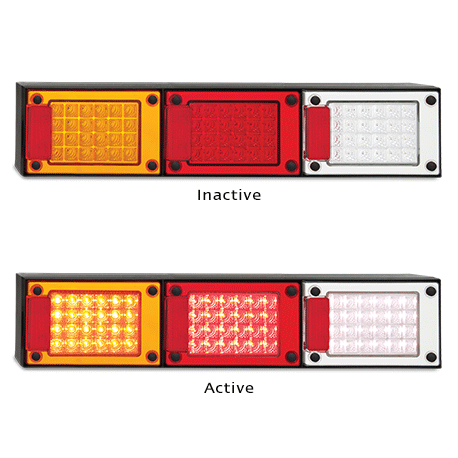

Function Stop/Tail/Indicator/Reverse/Reflector
Part No.
J3BARWM 12-24 Volt, Blister
.
.
LED Qty 72
Cable 1.2m
Draw Stop Tail Ind Rev
@13.8V  0.47A  0.04A 0.42A  0.18A
@28V 0.27A 0.03A 0.28A 0.11A
Approvals Function Category CRN
ADR Stop/Tail 49/00 42965
ADR Indicator 6/00 2a 42964
ADR Reverse 1/00 42967
ADR Reflector 47/00 42966
CTA Stop/Tail/Ind/Rev/Ref 49/00, 6/00 2a, 1/00, 47/00 CTA-042964
