125 Triple Series
Reference:
125 Triple Series
Features / Specifications
|
Fitting InstructionsHorizontally mount bracket onto a flat surface with screws provided, run wires through back and clip lens into place. Please refer to ADR 13/00 for mounting instructions. |
| Download Data Sheet |
Technical Drawings |
Please contact our Customer Service team for all sales enquiries.Phone: 1800 815 000 |
|
| Function | Stop/Tail/Indicator | ||
 |
|||
| Part No. | |||
| 125BARRM | 12-24 Volt, Blister | ||
| . | |||
| LED Qty | 192 | ||
| Cable | 40cm | ||
| Draw | Stop | Tail | Ind |
| @13.8V | 0.42A | 0.04A | 0.43A |
| @28V | 0.26A | 0.06A | 0.25A |
| Approvals | Function | Category | CRN |
| ADR | Stop/Tail | 49/00 | 33403 |
| ADR | Indicator | 6/00 2a | 33165 |
| CTA | Stop/Tail/Ind | 49/00, 6/00 2a | CTA-060220 |
| . | |||

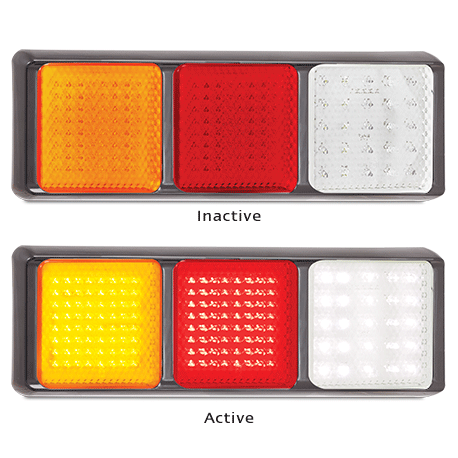

| Function | Stop/Tail/Indicator/Reverse | |||
 |
||||
| Part No. | ||||
| 125BARWM | 12-24 Volt, Blister | |||
| . | ||||
| LED Qty | 153 | |||
| Cable | 40cm | |||
| Draw | Stop | Tail | Ind | Rev |
| @13.8V | 0.42A | 0.04A | 0.43A | 0.36A |
| @28V | 0.26A | 0.06A | 0.25A | 0.18A |
| Approvals | Function | Category | CRN | |
| ADR | Stop/Tail | 49/00 | 33403 | |
| ADR | Indicator | 6/00 2a | 33165 | |
| ADR | Reverse | 1/00 | 35794 | |
| CTA | Stop/Tail/Ind/Rev | 49/00, 6/00 2a, 1/00 | CTA-060220 | |
