125 Series Double
  • 125 Series Double

125 Series Double

Reference: 125 Series Double

Features / Specifications

  • Designed for Medium Trucks
  • ADR Approved
  • IP67 Rated
  • 12-24 Volt
  • 5 Year Warranty
  • 340mm x 200mm x 60mm

Fitting Instructions

Horizontally secure using the top or back mounting holes in assemblies and run wires through the back. Please refer to ADR 13/00 for mounting instructions.
Download Data Sheet

Technical Drawings

Please contact our Customer Service team for all sales enquiries.

Phone: 1800 815 000
Email: [email protected]
Function Stop/Tail/Indicator/Reflector
Part No.

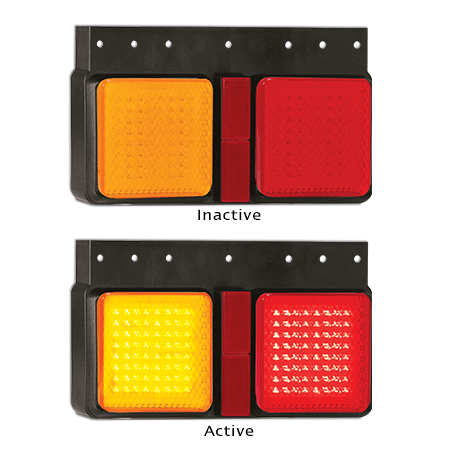

125BARML Left Hand Side, Box
.
LED Qty 128
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.42A  0.04A  0.43A
@28V 0.26A 0.06A 0.26A
Approvals Function Category CRN
ADR Stop/Tail 49/00 33403
ADR Indicator 6/00 2a 33165
ADR Reflector 47/00 38102
CTA Stop/Tail/Ind 49/00, 6/00 2a CTA-060220
CTA Reflector 47/00 CTA-060056
Function Stop/Tail/Indicator/Reflector
Part No.

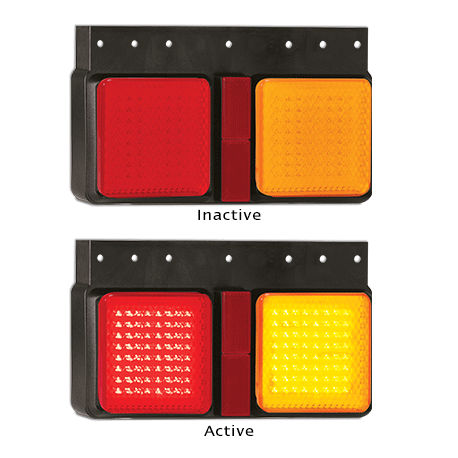

125BARMR Right Hand Side, Box
.
LED Qty 128
Cable 40cm
Draw Stop Tail Ind
@13.8V  0.42A  0.04A 0.43A
@28V 0.26A 0.06A 0.26A
Approvals Function Category CRN
ADR Stop/Tail 49/00 33403
ADR Indicator 6/00 2a 33165
ADR Reflector 47/00 38102
CTA Stop/Tail/Ind 49/00, 6/00 2a CTA-060220
CTA Reflector 47/00 CTA-060056
